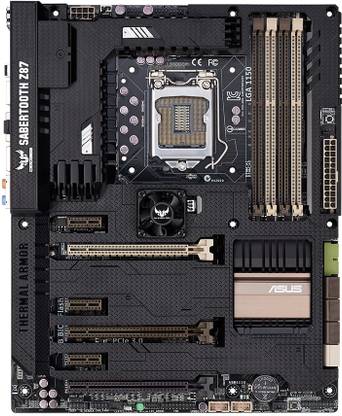

    Asus Sabertooth Z87 Motherboard

    Asus Sabertooth Z87 Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years Asus India Warranty and Free Transit InsuranceKnow More
    Highlights
    • Intel Z87
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 4, Intel Z87
    eSATA Ports, Controller
    • 2
    HDMI Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (Optical S/PDIF Ports)
    RJ-45 Ethernet Jacks
    • 1
    Other Ports
    • 1 x Display Port, 1 x USB BIOS Flashback Button
    In The Box
    Sales Package
    • Motherboard, I/O Shield, 2 x Sata Cables, User Manual, CD
    General Features
    Support CDs
    • Drivers, Asus Utilities, Asus/TUF CPU-Z
    Bundled Software
    • Anti-virus Software (OEM Version)
    OS Support
    • Windows: 7, 8
    BIOS
    • 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI 5.0, Multi-Language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut Functions, and Asus DRAM SPD (Serial Presence Detect) Memory Information
    Features
    • Supports Intel Extreme Memory Profile (XMP), PXE, Manageability: WfM 2.0, Supports Intel 22 nm CPU, DMI 2.7, WOL by PME
    Advanced Technologies
    • Supports Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
    Advanced Features
    • TUF Engine Power Design: 8 + 2 Digital Phase Power Design, TUF Components, Ultimate Cool Thermal Solution: TUF Thermal Armor with Flow Valve, TUF Thermal Radar 2, Safe and Stable Guardian Angel: Dust Defender, TUF Fortifier, Asus Exclusive Features: Remote Go, MemOK, AI Suite 3, Ai Charger, ESD Guards, Front Panel USB 3.0 Support, Asus UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Network iControl, USB 3.0 Boost, Asus EZ DIY: DirectKey, Precision Tweaker 2, ASUS O.C. Profile, Asus CrashFree BIOS 3, Asus EZ Flash 2, Multi-language BIOS, Asus Q-Design: Asus Q-Shield, Asus Q-LED (CPU, DRAM, VGA, Boot Device LED), Asus Q-Slot, Asus Q-DIMM, Asus Q-Connector
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Asus India Warranty and Free Transit Insurance
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1866 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • The Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPUs, 2 x SATA 6Gb/s Port (ASMedia ASM1061 Controller): These SATA Ports are for Data Hard Drivers Only, ATAPI Devices are Not Supported
    Dimensions
    Dimensions
    • 244 x 305 mm
    Essentials
    Form Factor
    • ATX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel 4th Generation Core i5 Processor, Intel Pentium Processor, Intel 4th Generation Core i3 Processor, Intel 4th Generation Core i7 Processor, Intel Celeron Processor
    Chipset
    • Intel Z87
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes, NVIDIA Quad-GPU SLI Technology, AMD Quad-GPU CrossFireX Technology
    Storage
    SATA 6 Gb/s
    • Intel Z87, ASMedia ASM1061
    RAID Controller
    • Intel Z87
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCIe x1 Slots, Generation
    • 3
    PCIe x16 Slots, Generation
    • 1, 3
    General
    Brand
    • ASUS
    Model ID
    • Sabertooth Z87
    Key Features
    • ATX Form Factor, Maximum 32 GB DDR3, LGA 1150 Socket Type, Dual Channel DIMM Memory, 4 Memory Slots, 1 HDMI Port, Intel Z87 Chipset
    Connectivity
    Ethernet Controller
    • Intel I217 V
    Ethernet Features
    • 1 x Gigabit LAN Controller
    Audio
    Audio Codec
    • Realtek ALC1150
    Audio Channels
    • 8
    Audio Features
    • HD Audio, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, Absolute Pitch 192 kHz/ 24-bit True BD Lossless Sound, Optical S/PDIF Out Port at Back Panel, BD Audio Layer Content Protection
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 8
    USB 2.0 Headers
    • 2
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 4 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x Clear CMOS Jumper, 1 x CPU OPT Fan Connector, 1 x DRCT Header, 1 x DirectKey Button, 2 x Assistant Fan Connector, 1 x 24-pin EATX Power Connector, 1 x MemOK Button, 3 x Thermal Sensor Connector, 1 x S/PDIF Out Header
