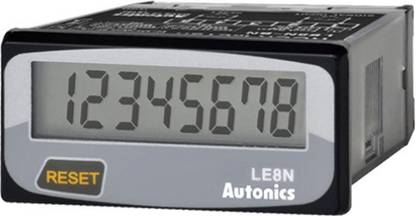

autonics Autonics LE8N-BF Test Indicator

Data sheet Display method 8-digit 7-segment LCD Operation method Count up Time operation POWER ON START Terminal Terminal block Power supply Built-in battery(over 10 years) Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour Input Method_Signal Free voltage input Input Method_Reset No-voltage input(NPN) Control output Indicator Protection structure IP66(front panel) Approval @(CE) @(CULUS) Min. signal Width SIGNAL, RESET input: Approx. 20ms
