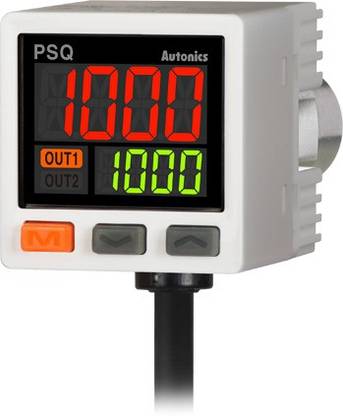

autonics Autonics PSQ-C1C-RC1/8 Test Indicator

Applicable fluid (Pneumatic type) Air, Non-corrosive gas Pressure port direction Rear fitting Pressure port Rc1/8 Connection type Connector type(connector type cable: 2m) Pressure type Compound pressure Rated pressure range -100 to 1,000kPa Display pressure unit MPa, kPa, kgf/cm², bar, psi, mmHg, inHg, mmH?O Control output Select one at parameter setting NPN open collector output PNP open collector output Power supply 12-24VDC @(=) ±10%(ripple P-P: max. 10%) Current consumption Max. 50mA Protection structure IP40 Approval @(CE) @(CULUS) Control output_Hysteresis Min. display interval Control output_Repeat error ±0.2% F.S. ±Min. display interval Control output_Response time Select one: 2.5ms, 5ms, 10ms, 25ms, 50ms, 100ms, 250ms, 500ms, 1,000ms, 5,000ms Environment_Ambient temperature -10 to 50?, storage: -20 to 60? Environment_Ambient humidity 30 to 80% RH, storage: 30 to 80% RH Material Front case: polycarbonate, Rear case: Polybutylene terephthalate + glass 15%, Pressure port: stainless steel 303 Weight Approx. 165g(approx. 80g)
