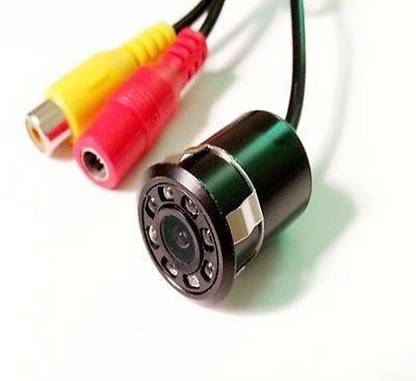

AutoTrends Mini Color CCD Reverse Backup Car Rear View LED Camera With Guide Lines Reverse Assist Camera System  (1 Camera, 656 x 592)

Mini Color CCD Reverse Backup Car Rear View LED Camera With Guide Lines. Features: Mini style, easy to intall, can fit all the cars (12V). Color CCD sensor, comes with 8 LED for fill light, NTSC system. Waterproof, Weatherproof,Shakeproof, Chill-proof, Anti high temperature. Nightvision, Low illumination and fill light automatic . 170 degree wide lens angle, with guide line. Specification: Image Sensors 1/3" Color CCD TV System NTSC Effective Pixels 656X592 Sensing Area (mm) 5.961 x 4.276 Resolution (TV Lines) 480 Minimum illumination 0.2 Lux Horizontal Sync.Frequency 15.625 KHZ Vertical Sync.Frequency 50 HZ Video Output 75 Ohm Gamma Consumption 0.45 AGC Auto BLC Auto Night Vision Yes Guide Line Yes IP Rating IP66-IP67 S/N ratio Better than 48dB Lens F=1.6 Lens Angle (Deg.) 170 Current Consumption (mA) max 200 Power Supply( DC.V) 12 Operating Temperature (Deg.C) -20?+65 (RH95% Max.) Storage Temperature (Deg.C) -40?+85 (RH95% Max.) Package Contains: 1 x Mini Car CCD LED Rear View Camera 1 x Manual 1 x Power Cable (1m) 1 x Vedio Cable (6m) 1 x Hole Saw Trouble Shooting: Fault phenomenon Cause Methods to deal with Screen jitter Fix bracket Baggy Adjustment and fix No image Plug did not link well or system disconnect Check whether the plug link well or system disconnect Fuzzy screen Camera's lens is not clean Clean the lens Inclined screen Camera's installed inclined Adjust the camera's bracket
