BELKIN Play Max Wireless Router 5 GHz 300 Mbps Wifi Speed Single Band Internal Antenna Ethernet (Cable Broadband)

BELKIN Play Max Wireless Router 5 GHz 300 Mbps Wifi Speed Single Band Internal Antenna Ethernet (Cable Broadband)  (Black)

Price: Not Available
Currently Unavailable
5 Years Manufacturer Warranty
Highlights
  • Type: Wireless Without Modem
  • 300 Mbps Speed
  • Frequency: 5 GHz
  • Internal Antenna
  • 2 USB Ports
Description

This Router is integrated with the advanced Dual Band N technology which gives you fast and reliable Internet connection for video, music and gaming. The Belkin Play Max delivers speeds of up to 300 Mbps offering better and high wireless performance.

This Belkin network Router is virtually a Plug and Play device, and can be configured on your system in three easy steps. You can connect up to 250 PCs to this Router and expect a seamless Internet experience. The device comes with a series of security features to ensure the protection of your network from Internet threats like scamming, phishing or virus attacks.

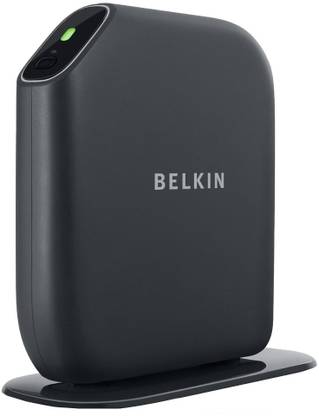

Design

The Belkin Play Max sports a sleek lightweight blackish grey chassis with smooth curving edges. This futuristic design lets you place it vertically, adding to its stylish appearance. One of the corners of the networking gear is carved out into a slant, where two LED indicators are situated. These detect the network status and the Wi-Fi Protected Setup (WPS) status of your Router. The WPS status indicator is underneath a small push button that helps establish a secure connection between your Router and other WPS-enabled Wi-Fi devices. There are four LAN ports, 1 WAN port and two USB 2.0 ports embedded along the side of the Router.

The USB 2.0 ports enable you to connect and share a USB hard drive or flash drive and share music and other files with other computers and devices within your network. You can also connect a printer and print documents from any system across your network, saving you the trouble of coming back to just one computer for print outs.

Connectivity and Security

This Belkin Router supports IEEE 802.11 b/g/n Wireless standards, giving you maximum Internet speed of up to 300 Mbps. The Router offers a bandwidth of 20 MHz and 20/40 MHz auto on a 2.4 GHz and 5 GHz band. This allows the Router to connect to the Internet on different channels depending on the traffic from other networks connected to the Internet.

The Router has Dual-plane in-built antennae that are designed on the Multiple Input Multiple Output (MIMO) technology. This advanced technology proves beneficial in providing three-dimensional consistent network coverage. This 3D technology lets the signal remain hassle-free as it provides coverage for consistent signal, even through walls and floors.

The Router utilises Network Address Translation (NAT) engineering letting you share a single Internet Protocol address across your network. This Router assures you the security of your network from Internet-related threats through a series of firewall like WPA, WPA2 encryption, and WPS 256-bit, 64-bit, 128-bit WEP.

Features

This Play Max Router comes integrated with a series of applications to ease your Internet downloads and uploads. The Router is equipped with Torrent Genie App for downloading large files like movies. The Bit Boost app lets you select and prioritise your most important data streams for seamless network traffic.

For listening to music, you can use the Music Mover App that enables you to play tracks from your library. You can also connect an external hard drive and move the music from your computer to your stereo through devices like Xbox 360 or PlayStation 3. The Belkin Router also has some more music features like the Daily DJ and Music Labeler apps that help you explore music on the Internet.

The Print Genie application helps you print documents from any corner within the network, and from any system connected to your wireless router. A special feature of this Router is that the device comes pre-installed with a Self-Healing Application which automatically detects and resolves network problems and also runs regular scans to give you a seamless wireless connection. Furthermore, the Belkin Play Max Router comes equipped with PPTP and IPSec VPN pass-through to communicate within your network.

Read More
Specifications
General
Type
  • Wireless Without Modem
Installation Features
  • UPnP Server
Model
  • Play Max
Part Number
  • F7D4301zb
In The Box
  • Play Max Wireless Router, Setup CD with User Manual, Power Supply
LED Indicator
  • 1 x Network status, 1 x WPS
Supported Software
  • Easy Start, Preset Security, Video Max HD, Self Healing, Print Genie, Memory Safe, Daily DJ, Music Mover, Music Labeler, Bit Boost, Torrent Genie, Internet Explorer 68, Firefox 1.0, Safari 2.0
Color
  • Black
Brand
  • BELKIN
Net Quantity
  • 1
Operating Conditions
Operating Humidity
  • Operating: 10 % - 85 % Non-condensing, Storing: 5 % - 95 % Non-condensing
Temperature
  • 0DegC - 40DegC degree C
Power
Power Supply
  • External
System Requirements
Operating System
  • Windows XP 32 Bit, Windows Vista, Windows 7, Mac OS x v10.5, Mac x v10.6
Supported Protocols
Standard IEEE
  • IEEE 802.11a/b/g/n
Network Features
Frequency
  • 5 GHz
Bandwidth
  • 40 MHz
Frequency Band
  • Single Band
Speed
Wireless Speed
  • 300 Mbps
LAN/WAN
  • 10/100/1000
Connectivity
USB
  • USB 2.0
Antennae
  • Internal
Number of LAN ports
  • 4
Number of WAN ports
  • 1
Number of USB Ports
  • 2
WAN
  • RJ-45
LAN
  • RJ-45
Number of Antennae
  • 2
Antennae Capacity
  • Dual-Plane Antenna
Security
Encryption
  • Wi-Fi Protected Setup (WPS), WPS, WPA2
Other Security Features
  • WPS Push button security
Firewall
  • NAT, SPI
Additional Features
Other Features
  • Web-based password-protected advanced, Supports external USB hard drives formatted in FAT 16/32 and NTFS file systems Supports USB printer, ISP Protocols Supported: Dynamic / Static / PPOE / Telstra BigPond
SSID Support
  • Radio Service Set ID (SSID)
VPN
  • PPTP, IPSec pass-through
Dimensions
Height
  • 88.9 mm
Width
  • 254 mm
Depth
  • 203.2 mm
Warranty
Service Type
  • Carry In
Warranty Type
  • Limited Warranty
Covered in Warranty
  • Manufacturing Defects
Domestic Term
  • 3 Year
Not Covered in Warranty
  • Physical damage and burn out cases are not entitled for warranty
Warranty Summary
  • 5 Years Manufacturer Warranty
Ratings & Reviews
4.5
14 Ratings &
3 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 9
  • 4
  • 0
  • 1
  • 0
5

Worth Buying

Hi guys,

I would recommend to buy this product. Its absolutely awesome product compared to the price range it come with.

I have installed DDWRT firmware on this router and the performance increase to great extend.

1/ VPN
2/ WIFI range
3/ Dyn dns for static ip address
4/ QOS to priorities voice and video traffic (basically skype )
5/ I have connected my NAS drive to it and i can wirelessly play movies songs pictures on mobile / laptop / TV

I would recommend to buy this product.
READ MORE

Samrat Sharma

Oct, 2014

0
0
Report Abuse
5

great router

Well u guys who commented not worth and all

have u check dd wrt??

this router is supported which makes this router great
READ MORE

Yogesh Pise

Jan, 2014

0
0
Report Abuse
4

best with dd-wrt or tomato

if you buy this router, you HAVE to flash it with dd-wrt or tomato to make it to anything useful. buy only if you are ready to do that. that said, it's great with dd-wrt and/or tomato. this price is ridiculous though - i got it for $30 (about Rs 1900/-) this price is twice that.
READ MORE

DD

Oct, 2013

0
0
Report Abuse
