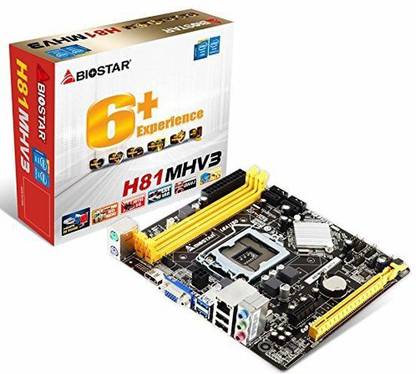

Biostar H81MHV3 DDR3 LGA 1150Socket Micro-ATX Intel H81 Express Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic Service Center Warranty

Highlights

Suitable For Desktop
Intel H81 Express
Data Rate DDR3
Maximum RAM Capacity Upto 16GB
Form Factor: Micro-ATX

Description

Processors : Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150 Processor Memory : Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max. Supports up to 16GB Memory INTEGRATED VIDEO : By CPU model Supports DX11.1

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	0
HDMI Ports	1
IEEE 1394a Ports	0
DVI Ports	0
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	0

In The Box

Sales Package

1 Mother board

General Features

Processor Clock Speed	0
Overclocking	NA
Hardware Monitoring	CPU / System Temperature Monitoring, CPU / System Fan Monitoring, Smart / Manual CPU Fan Control, System Voltage Monitoring
Support CDs	Drivers, Softwares, Utilities
Bundled Software	BIO-Remote 2, Smart Speed LAN
OS Support	Windows 7, Windows 8, Windows 8.1, windows 10
BIOS	Hi-Fi B85N 3D
Advanced Technologies	Bios Flash

Warranty

Domestic Warranty	3 Year
International Warranty	0 Year
Warranty Summary	3 Year Domestic Service Center Warranty
Covered in Warranty	Warranty Of The Product is Limited to Manufacturing Defects Only
Not Covered in Warranty	Physical Damaged , Warranty does not cover any external accessories (such as battery, cable, carrying bag), damage caused to the product due to improper installation by customer, normal wear and tear to magnetic heads, audio, video, laser pick-ups and TV picture tubes, panel, damages caused to the product by accident, lightening, ingress of water, fire, dropping or excessive shock, any damage caused due to tampering of the product by an unauthorized agent, liability for loss of data, recorded images or business opportunity loss.
Warranty Service Type	Domestic Service Center Warranty , Customer needs to call the nearby Authorized Service Center

Memory

Memory Configuration	Upto 16GB DDR3 Support Dual Channel DIMM
Memory Frequency	1600
ECC Support	NA
Buffered Memory	No

Limitations

Dimensions

Dimensions	190 x 170
Weight	450

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1150
Compatible Processors	Supports Socket LGA1150 4th generation Intel® Core™ i7/i5/i3/Pentium/Celeron processors
FSB	NA
Chipset	Intel H81 Express, Intel H81 Express chipset
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	By CPU model Supports DX11.1
External Graphics Card Support	Yes
Side Port Memory	NA

Storage

SATA 1.5 Gb/s	0
SATA 3 Gb/s	0
SATA 6 Gb/s	0, 1
RAID Controller	NA
RAID Configurations	0
PATA Ultra DMA	0, NA

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1
PCIe x2 Slots, Generation	0
PCIe x4 Slots, Generation	0
PCIe x8 Slots, Generation	0
PCIe x16 Slots, Generation	1
Mini PCIe Slots	0

General

Brand	Biostar
Series	H81
Model ID	H81MHV3 DDR3
Designed For	Desktop
Color	Black
Capacity	16
Key Features	Intel LGA 1150 Cpu, 1 x HDMI Connector, 2 x USB 3.0 Connector, 1 x Gigabit LAN Port, 5.1ch HD Audio, 2 x DIMM DDR3 1600 Slots, USB 2.0 Headers, Serial Port Header, 1 x PCI-Express 2.0 X16 SLOT

Connectivity

Ethernet Controller	Realtek RTL8111G - 10/100/1000 Controller
Ethernet Card	10/100
Ethernet Features	GbE Lan 10/100, 1Gb/s Transfer Rate
Number of Printer Ports	0
Number of Com Ports	0
Wireless and Bluetooth	0 and 0

Audio

Audio Codec	Realtek ALC662 6-Channel HD Audio
Audio Channels	5.1
Audio Features	HD Audio Provides high quality sound with minimal loss of audio fidelity.

Internal I/o Headers

SATA 6 Gb/s Headers	0
USB 2.0 Headers	2
USB 3.0 Headers	0
ATX Power Connectors	0 (4 Pin EATX), 0 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x PS/2 Keyboard, 1 x PS/2 Mouse
VGA/Dsub Connectors	1
