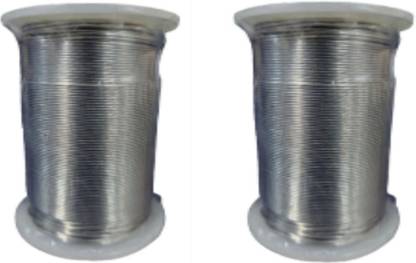

Bond Solder Wire 60/40 Tin/Lead Rosin Cored Solder wire 22-swg(0.71 mm). Weight - 1KG 0 W Simple  (Pointed Tip)

• The main constituents of 60/40 solder wire are Tin (Sn) and Lead (Pb). • This Solder wire is made of high purity of rosin and proprietary activators which provides rapid wetting and good spreadability. • KTE wire is made from virgin Tin/Lead having 99.9% purity. • Health and Safety: It is not toxic however a certain amount of fumes will be generated, therefore these fumes must be exhausted for the operator’s safety. PHYSICAL PROPERTIES • Item --> Solder Wire • Grade --> Sn60Pb40 • Appearance--> Bright shinning • Specific gravity (gm/cm3)--> 8.50 • Tensile strength (PSI)--> 6400 • Melting point (ºC) --> 183-187 ºC • Recommended working temperature--> 325- 375ºC TECHNICAL SPECIFICATION(As Per IPC-TM-650-J-STD004) • Flux Type--> RMA • Flux Content--> 2.50%±0.50% • Corrosiveness --> Passes copper mirror test • Copper plate corrosion (60ºC,95% RH, 24 hours)--> No corrosion observed • Surface insulation resistance (?) ? Before humidity --> 1 x 1010 ? After humidity--> 5 x 107 • Electromigration--> Passes • Wetting balance test--> Passes • Spreadability--> >85 % • Dryness--> Passes
