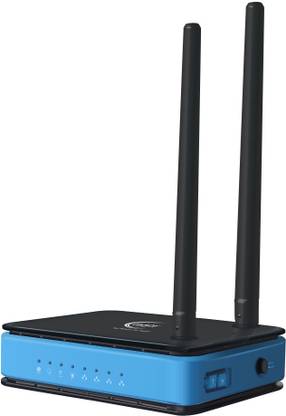

300Mbps Wireless N Router, CA-R300 offers a convenient way to connect to the internet and provides high speed Wireless N network with speed up to 300 Mbps.
Features
1. IGMP snooping and IGMP proxy
2. IPv4/IPv6 dual stacks function
3. VPN pass through
4. Management - HTTP Web-based Configuration
Details
Wifi Specifications
Operating Frequency : 2.412G~2.484GHz
Supports 802.11b data rates of up to 11 Mbps with automatic fallback to 5.5, 2, and1 Mbps
Supports 802.11g data rates of up to 54 Mbps with automatic fallback to 48, 36, 24,18, 12, 9, and 6 Mbps
Support 802.11n (MIMO 2T2R): Up to 300Mbps (MCS15)
Security supports 64/128-bits WEP, WPA,WPA2, WPS
Multi-SSID
Ethernet WAN Specifications
WAN:10 / 100Mbps Auto-MDI / MDI-X RJ-45 Ethernet port
WAN IP Assignment
Static IP
DHCP client
PPPoE client
LAN Specifications
LAN:10 / 100 Mbps Auto-MDI / MDI-X RJ-45 Ethernet port
Hardware Interfaces
1 x DC Power jack
1 x Power switch to power on /off device
1 x Reset button to factory defaults
1 x WAN:10 / 100Mbps Auto-MDI / MDI-X RJ-45 Ethernet port
4 x LAN:10 / 100Mbps Auto-MDI / MDI-X RJ-45 Ethernet port
2 x 5dBi Antenna
1 x WiFi ON/OFF, WPS switch button
Operating Environment
Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C
Humidity: 20 – 95% non-condensing
