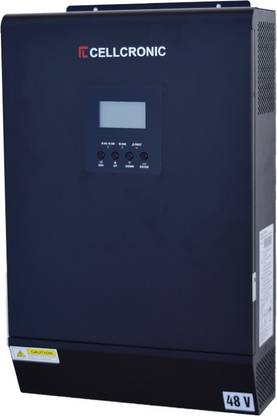

Cellcronic 800 VA with 2 Year Warranty Solar Compatible Pure Sine Wave Inverter (Alpha V 3 on-grid Hybrid solar inverter 5kw-48v)

Price: Not Available

Currently Unavailable

Warranty

Description

Alpha VIII is third generation inverter technology which comes with company fitted battery wire and AC DC Distribution Box. This third generation inverter can accept high PV voltage range (120~450vdc) and this features will facilitate PV system installation easy. Inverter can run with or without battery. We also offers parallel operation function up to 9 units. It offers high flexibility for future power expansion.

Specifications

Output Features

Efficiency	99 %
Output Voltage	220~240
Output Frequency	50
Overload	5200w
AC Output Types	pure sine wave
Output Power	5000 W
Change Over Time	10 ms
Change Over Voltage	230
VA Rating	800 VA

Environmental Features

Storage Temperature	-10 to +55
Operating Temperature	-10 to +55

Warranty

Service Type	OFFSITE
Covered in Warranty	ALL PARTS
Not Covered in Warranty	ERROR 03, PHYSICAL DAMAGE
Domestic Warranty	2 Year

Input Features

Input Voltage	170~260
Input Frequency	50
Low Cut Input Voltage	42
Low Cut Recovery Input Voltage	42
High Cut Input Voltage	58.4
High Cut Recovery Input Voltage	63

Battery Features

Recharge Time	2 hours
Number of Batteries	Min. 4, Max. 40
Battery Boost Voltage	58.4
Battery Voltage	48V
Battery Charging Current	140A
Replacement Battery	No
Replacement Battery Type	Lead Acid
Compatible Battery Types	Lithium Battery

In The Box

Sales Package

99500

General

Brand	Cellcronic
Model Number	Alpha V 3 on-grid Hybrid solar inverter 5kw-48v
Battery Included	No
Back Up Time	12 hrs
Load Options	2 1.5Ton Ac, 2 1HP water Pump, 3HP Motor and other load up to 5kw
Type	Pure Sine Wave Inverter
Mode Type	on-grid hybrid solar MPPT inverter
Material	steel
Fixture Type	wall mounted
Technology Used	hybrid
Solar Power Compatible	Yes

Dimensions

Width	29.5 cm
Height	45 cm
Depth	12 cm
Weight	10.97 kg

Additional Features

Certification	IEC 61683 , IEC, EN 62109 Certificate
Corrosion Resistant	Yes
Key Features	Pure sine wave output. 5000W Wide MPPT (120~450vdc) charge controller., Self-consumption and Feed-in to the grid. Work with or without battery., User-adjustable charging current and voltage. Monitoring software for real-time., Parallel operation upto 9 units. Work with or without netmeter facility., Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup

Convenience Features

Emergency Power Off	Yes
Display Type	led
