chinsa RF MODULE Double-Sided PCB

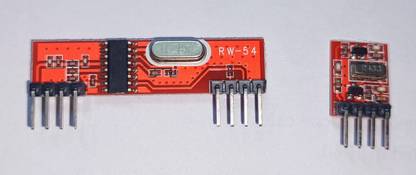

This hybrid RF Transceiver Module provides a complete RF transmitter and receiver module solution which can be used to transmit data at up to 3KHz from any standard CMOS/TTL source. The transmitter module is very simple to operate and offers low current consumption (typical. 11mA). Data can be supplied directly from a microprocessor or encoding device, thus keeping the component count down and ensuring a low hardware cost. The RX – ASK is an ASK Hybrid receiver module. The RF Transmitter Receiver Module is an effective low-cost solution for using 433 MHz. The TX-ASK is an ASK hybrid transmitter module. TX-ASK is designed by the saw resonator, with an effective low cost, small size and simple to use for designing. Specifications of 433MHz RF Transmitter Receiver Wireless Module:- Range in open space(Standard Conditions) : 100 Meters RX Receiver Frequency : 433 MHz RX Typical Sensitivity : 105 Dbm RX Supply Current : 3.5 mA RX IF Frequency : 1MHz RX Operating Voltage : 5V TX Frequency Range : 433.92 MHz TX Supply Voltage : 3V ~ 6V TX Out Put Power : 4 ~ 12 Dbm Features of 433MHz RF Transmitter Receiver Wireless Module:- Low Power Consumption Easy For RF based Application Complete Radio Transmitter Transmit Range Up To 50m CMOS / TTL Input No Adjustable Components Very Stable Operating Frequency Low Current Consumption (Typ 11mA) Wide Operating Voltage ASK Modulation
