Flame Sensor infrared Receiver Ignition source detection module IR Sensors
circuitcomponents Flame Sensor infrared Receiver Ignition source ...more
Product highlights
Sales Package
1 x Flame sensor infrared receiver module ignition source detection module
Brand
circuitcomponents
Model Number
Flame Sensor infrared Receiver Ignition source detection module
Type
IR Sensors
Minimum Sensing Range
0
Maximum Sensing Range
80
Power Requirement
DC
Power Consumption
0.01 W
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Sales Package
1 x Flame sensor infrared receiver module ignition source detection module
General
Brand
circuitcomponents
Model Number
Flame Sensor infrared Receiver Ignition source detection module
Type
IR Sensors
Minimum Sensing Range
0
Maximum Sensing Range
80
Power Requirement
DC
Power Consumption
0.01 W
Maximum Operating Temperature
60 degC
Minimum Operating Temperature
0 degC
Detection Angle
90 Degree
Material
COPPER
Other Features
Indicator light: a green one for the switch, a red one for power. Built in a potentiometer for sensitivity control. Onboard signal output indication, output effective signal is high, at the same time the indicator light up, the output signal can directly connect to microcontroller IO. Can detect fire or wavelength in 760 ~ 1100 nm nano within the scope of the light source. Detection angle about 60 degrees, the flame spectrum especially sensitive. The flame of the most sensitive sensors flame, the regular light is also a response, generally used for fire alarm purposes.
Response Time
0.01
See more

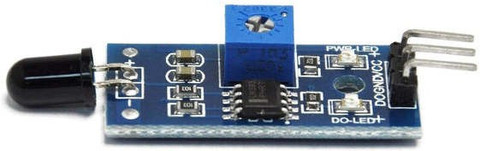

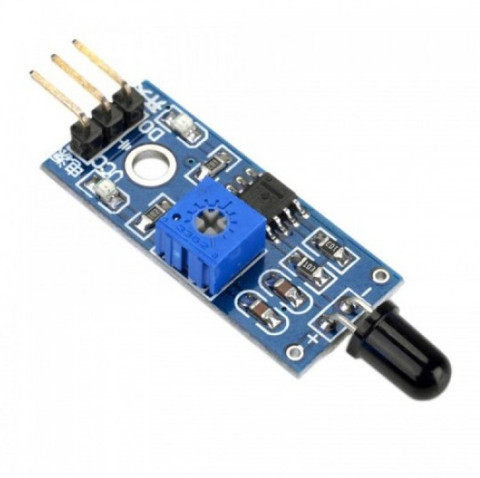

This tiny Flame sensor infrared receiver module ignition source detection module is Arduino compatible can use to detect flame or wavelength of the light source within 760nm~1100nm also useful for Lighter flame detect at the distance 80cm. Greater the flame, farther the test distance. It has the Detect angle of 60 and very sensitive to flame spectrum. It produces the one channel output signal at the D0 terminal for further processing like an alarm system or any switching system. The sensitivity is adjustable with the help of blue potentiometer given on the board.
See more
Warranty Summary
NA
Covered in Warranty
NA
Not Covered in Warranty
NA
Warranty Service Type
NA
Generic Name
Sensor
Country of Origin
India
Name and address of the Manufacturer
GENERIC FLAME SENSOR
Name and address of the Packer
R P ENTERPRISES
