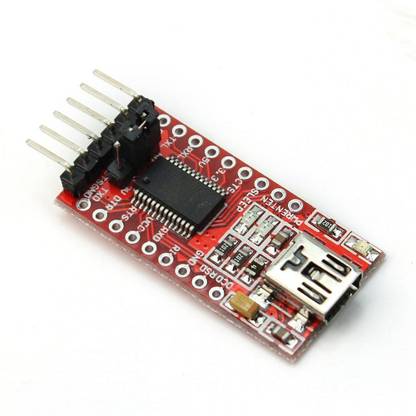

    circuitcomponents Serial Converter FTDI FT232RL USB To TTL Adapter Module 5V 3.3V USB To Serial Converter FT232 FTDI Adapter Module FT 232 TTL Electronic Components Electronic Hobby Kit

    circuitcomponents Serial Converter FTDI FT232RL USB To TTL Adapter Module 5V 3.3V USB To Serial Converter FT232 FTDI Adapter Module FT 232 TTL Electronic Components Electronic Hobby Kit

    Price: Not Available
    Currently Unavailable
    Warranty
    NA
    Highlights
    • Power Source: DC
    • RoHS Compliant
    • Material: Copper
    • Weight: 100
    Specifications
    In The Box
    • 1 x FT232RL USB to serial converter module
    General
    Brand
    • circuitcomponents
    Model Number
    • Serial Converter FTDI FT232RL USB To TTL Adapter Module 5V 3.3V USB To Serial Converter FT232 FTDI Adapter Module FT 232 TTL
    Skillset
    • Memory Building
    Type
    • Electronic Components
    ROHS Complaint
    • Yes
    Material
    • Copper
    Age Group
    • 16+ Years
    Key Features
    • DTR – Reset the other hardware device RX – Used to receive the serial data. TX – Used to transmit the serial data. VCC – Provides 5V or 3.3V voltage output as per the requirement CTS – Enable or disable the programming mode of the device GND – Ground pin, FT232R chip is a single-chip solution , generally do not need to use basic peripherals , and even crystal , USB matching resistor , place the product information have been integrated in the internal EEPROM of the . FT232R There are some more useful features, details can be found FT232R data sheet . Datasheet Download : www.ftdichip.com/Products/ICs/FT232R.htm Introduction: hardware using FTDI FT232RL chip companies ; FT232RL chip lead all the signal port , TTL / CMOS level ; RXD / TXD Transceiver Communications LED ; USB -powered, 5V or 3.3V selectable interface leve
    Dimensions
    Width
    • 1.8 cm
    Height
    • 1 cm
    Weight
    • 100
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC
    Other Power Features
    • Support 3.3V, 5V Chipset: FT232RL USB power has over current protection, using 500MA self-restore fuse RXD/TXD transceiver communication indicator Pin definition: DTR,RXD,TX,VCC,CTS,GND Pitch:2.54mm Module Size: About 36mm(length)*17.5mm(width) Interface : Mini USB Pin definition: DTR,RXD,TX,VCC,CTS,GND Pitch:2.54mm
    Warranty
    Warranty Summary
    • NA
    Service Type
    • NA
    Covered in Warranty
    • NA
    Not Covered in Warranty
    • NA
