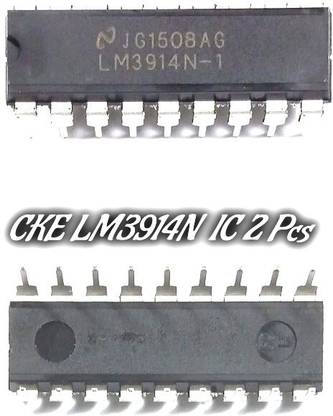

CKE LM3914N -1 IC LED Driver LED Lighting Drivers Dot/Bar Display DIP-18 (PACK OF 2) Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Warranty

Highlights

Power Source: DC
RoHS Compliant
Material: Silicone
Weight: 0.03

Description

CKE PACK OF 2 PCS LM3914N. The LM3914N-1 is a monolithic integrated circuit that senses analogue voltage levels and drives 10 LEDs, providing a linear analogue display. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors. Drives LEDs, LCDs or vacuum fluorescents; Bar or dot display mode externally selectable by user; Expandable to displays of 100 steps; Inputs operate down to ground. No multiplexing switching or interaction between outputs; LED driver outputs are current regulated, open-collectors; Outputs can interface with TTL or CMOS logic. Applications: LED Lighting, Lighting

Specifications

In The Box

PACK OF 2 PCS IC LM3914 N -1

General

brand	CKE
Model Number	LM3914N -1 IC LED Driver LED Lighting Drivers Dot/Bar Display DIP-18 (PACK OF 2)
Type	Electronic Components
Minimum Age	12
ROHS Complaint	Yes
Material	Silicone

Additional Features

Other Features

No multiplexing switching or interaction between outputs; LED driver outputs are current regulated, open-collectors; Outputs can interface with TTL or CMOS logic., Drives LEDs, LCDs or vacuum fluorescents; Bar or dot display mode externally selectable by user; Expandable to displays of 100 steps; Inputs operate down to ground., Total power dissipation (Tamb = 70°C): 1365W, The LM3914N-1 is a monolithic integrated circuit that senses analogue voltage levels and drives 10 LEDs, Its providing a linear analogue display. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors.

Dimensions

Width	1.2 cm
Height	1 cm
Other Dimensions	20x15x15 mm
Weight	0.03

Power Features

Battery Type	NO
No Of Batteries	NO
Battery Size	no
Power Source	DC
Other Power Features	The LM3914N-1 is a monolithic integrated circuit that senses analogue voltage levels and drives 10 LEDs, providing a linear analogue display. Current drive to the LEDs is regulated and programmable, eliminating the need for resistors, Drives LEDs, LCDs or vacuum fluorescents; Bar or dot display mode externally selectable by user; Expandable to displays of 100 steps; Inputs operate down to ground., No multiplexing switching or interaction between outputs; LED driver outputs are current regulated, open-collectors; Outputs can interface with TTL or CMOS logic, Internal voltage reference from 1.2V to 12V

Warranty

Warranty Summary	0
Service Type	NA
Covered in Warranty	NOT APPLICABLE
Not Covered in Warranty	NA
