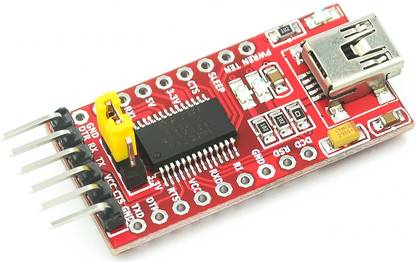

ControllersTech FT232 FTDI USB to UART TTL module Multilayer PCB

ControllersTech FT232 FTDI USB to UART TTL module Multilayer PCB

Price: Not Available
Currently Unavailable
Description
FT232RL USB TO UART TTL Module is a USB To Serial basic module based on the FTDI FT232RL USB to serial IC. The pinout of this board matches the FTDI cable to work with Arduino boards. This board has the DTR pin which allows an auto reset the Arduino when a new sketch is uploaded in the Arduino. Thus there is no need to hit the reset button while uploading the code in Arduino. One of the nice features of this FT232RL USB TO UART TTL Module is a jumper on the board that allows the board to be configured to either 3.3V or 5V (both power output and IO level). This board ship default to 5V, but you can cut the default trace and add a solder jumper if you need to switch to 3.3V.
Read More
Specifications
In The Box
Sales Package
  • 1x FT232 USB to UART Module
Pack of
  • Pack of 1
General
Brand
  • ControllersTech
Model Number
  • FT232 FTDI USB to UART TTL module
Type
  • Multilayer PCB
Board Type
  • Single Sided
Frequency
  • NA
Power Requirement
  • 3.3-5 V
Board Thickness
  • 2.54 mm
Power Consumption
  • 0.3 W
Maximum Operating Temperature
  • 50 degC
Minimum Operating Temperature
  • 0 degC
Other Features
  • Fully integrated 1024 bit EEPROM storing device descriptors and CBUS I/O configuration.
  • Data transfer rates from 300 baud to 3 MBaud (RS422, RS485, RS232) at TTL levels.
  • 128 byte receive buffer and 256 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
  • Integrated +3.3V level converter for USB I/O.
Net Quantity
  • 1
Dimensions
Length
  • 3.6 cm
Width
  • 1.8 cm
Weight
  • 0.004 kg
