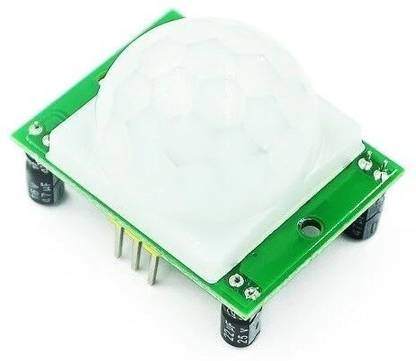

ControllersTech HC_SR501 PIR Motion Detector Sensor

Price: Not Available

Currently Unavailable

Warranty

Description

HC-SR501 is based on infrared technology, automatic control module, using Germany imported LHI778 probe design, high sensitivity, high reliability, ultra-low-voltage operating mode, widely used in various auto-sensing electrical equipment, especially for battery-powered automatic controlled products. Specification: ? Voltage: 5V – 20V ? Power Consumption: 65mA ? TTL output: 3.3V, 0V ? Lock time: 0.2 sec ? Trigger methods: L – disable repeat trigger, H enable repeat trigger ? Sensing range: less than 120 degree, within 7 meters ? Temperature: – 15 ~ +70 ? Dimension: 32*24 mm, distance between screw 28mm, M2, Lens dimension in diameter: 23mm

Specifications

In The Box

Sales Package

1x HC_SR501

General

Brand	ControllersTech
Model Number	HC_SR501 PIR
Type	Motion Detector Sensor
Minimum Sensing Range	0
Maximum Sensing Range	700
Power Requirement	5-20V
Power Consumption	0.4 W
Maximum Operating Temperature	70 degC
Minimum Operating Temperature	15 degC
Color	Green Blue
Display Unit	No
Detection Angle	90 Degree
Other Features	Voltage Output: High/Low level signal: 3.3V TTL output Trigger methods: L – disable repeat trigger, H enable repeat trigger Sensing range: less than 120 degree, within 7 meters Voltage: 5V – 20V, Power Consumption: 65mA
Response Time	300

Dimensions

Length	3.2 cm
Width	2.4 cm
Weight	0.05 kg

Warranty

Service Type	NA
Covered in Warranty	NA
Not Covered in Warranty	NA
Warranty Summary	NA
