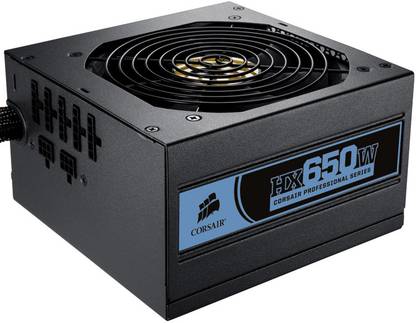

Corsair HX650 650 Watts PSU

Corsair HX650 650 Watts PSU

Price: Not Available
Currently Unavailable
Warranty
Customer Contacts 18004255464 for Warranty
Highlights
  • Power Output: 650 W
  • 1 12V Power Rails
  • ATX 12V Version: 2.2
  • Number of Fans: 1
Specifications
General
Brand
  • Corsair
Series
  • Professional Series
Part Number
  • CMPSU-650HXUK
Power Output
  • 650 W
ATX & EPS Version
  • ATX 12V v2.2 and EPS 12V v2.91
Power Rail
  • 1 x 12V Power Rails
SLI Certification
  • Yes
Model Name
  • HX650
Power
Power Factor Correction (PFC)
  • Active PFC with Value of 0.99
Input Voltage 1
  • 90 - 264 V
Input Voltage 2
  • 100 - 240 V
Input Current
  • -12 A
Input Frequency
  • 50 - 60 Hz
Efficiency
  • 85 %
Mean time between failures (MTBF)
  • 1,00,000 hr
Maximum Current
Current at DC Output of +3.3 V
  • 24 A
Current at DC Output of +5 V
  • 30 A
Current at DC Output of +12 V
  • 52 A
Current at DC Output of -12 V
  • 0.8 A
Current at DC Output of +5 V sb
  • 3 A
Features
Fan Type
  • 1 x 120 mm Double Ball Bearing, Temperature Controlled Fans, Ultra Quiet, Low Noise Level
Temperature
  • to 50 °C (Operating Temperature)
Protection
  • Over Current Protection, Over Voltage Protection, Over Power Protection, Under Voltage Protection, Short Circuit Protection
Safety Standards
  • UL, CUL, CE, CB, FCC Class B, TUV, CCC, C-tick
Certification
  • 80 Plus Bronze
Connectivity
Motherboard
  • 1 Motherboard Connector with 20 Pin, 24 Pin
CPU
  • 1 CPU Connector with EPS 12 V (8 Pin)
SATA
  • 9 SATA Cables
Floppy
  • 2 Floppy Connector with 4 pins
Peripheral
  • 8 Peripheral Connector with 4 pins
Other Features
Additional Features
  • Pheripheral Cable: 2
Dimensions
Width x Height x Depth
  • 150 x 86 x 150 mm
Warranty
Domestic Term
  • 7 Years
Warranty Summary
  • Customer Contacts 18004255464 for Warranty
Ratings & Reviews
4.8
13 Ratings &
3 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 11
  • 1
  • 1
  • 0
  • 0
5

Excellent Quality Power Supply

Using it for a month now and the performance is excellent.

Product delivery took 3 days after placing the order. Product packaging was done nicely in quality plastic.

It is excellent power supply with partially modular cabling. Only CPU and Motherboard power cables are attached with it. Other cables are nicely kept in bag having corsair logo on it. Pretty good.

Pros:
1) Sufficient cables provided for 650W psu.
2) Cable lengths are enough for mid tower cabinet.
3) Very silent ( fan starts ...
READ MORE

Yogesh Ralebhat

Certified Buyer

Jul, 2012

0
1
Report Abuse
5

Nothing much

You get for what you pay for..this is the best psu for the money we spend.
i have this in my system..its quite,single 12v rail with max of 52 A output. 80 plus gold certified
AMD FX 8320
Sapphire R9 280x
4gb *2 Kingston HyperX red ddr3 ram
Asus M5A97 EVO R2.0
1TB HDD
Samsung 840 EVO SSD 120 GB
DVD ROM.
READ MORE

jeba clament

Certified Buyer, Chennai

Jun, 2014

0
0
Report Abuse
3

It is the older model 80Plus Bronze.

http://www.corsair.com/en/professional-series-hx650-80-plus-bronze-certified-modular-power-supply

It is the older model ,that's why flipkart selling it for so much less, it is available for 8k+ on other sites which are 80Plus GOLD models also.
READ MORE

karan Kaul

May, 2014

0
0
Report Abuse
