Brand	Corslet
Model Number	Digital Multimeter XL830L Multi Meter Digital Meter for Electronics & Mobile Multimeters Digital Multimeter Voltage Tester
Type	Digital
Display Type	LCD
Color	Yellow
Material	Plastic
Primary Functions	It can be used to measure DC and AC voltage, DC current, resistors, diodes, transistors and circuit continuity test.
Number of Counts	2000
Model Name	Digital Multimeter XL830L Multi Meter Digital Meter for Electronics & Mobile Multimeters Digital Multimeter Voltage Tester
Brand Color	Yellow & Black
LED Indicators	No
Audible Continuity Test	Yes
Buttons	2
Display Size	4.5x1.7cm
Data Freeze	Yes
Autoranging	No
Reading Storage	No
Backlight	Yes
PC Connectivity	No

AC Current	200uA, 2mA, 20mA, 200mA, 10A
AC Voltage	200V, 600V
DC Voltage	200mV, 2V, 20V, 200V
Resistance	200 Ohm, 2k Ohm, 20k Ohm, 200k Ohm, 2m Ohm
Other Functions	•LCD Display: 1.8? •Max. Display: 2000 •DC Voltage:200mV/2V/20V/200V ±0.5%+2?600V±0.8%+2 • AC Voltage:200/600V ±1.2%+10 • DC Current:200uA/2mA/20mA ±1.0%+2,200mA±1.5%+2, 10A ±3%+2 • Resistance:200/2K/20K/200K/2Mohm ±1.0%+2 • Powered by 1 x 9V battery • Display: LCD 1999 counts, updates 2-3/sec • Diode test, and data hold • With back-light • TRANSISTOR hFE TEST (0-1000) • Buzzer: less than 50ohm • Item size/Weight: 1407035mm /276g • Packaging: 1. Digital multi-meter 2. Test Leads 3. English manual 4. Battery

Certification	NA
Technology Used	used to measure DC and AC voltage, DC current, resistors, diodes, transistors and circuit continuity test.
Other Features	It can be used to measure voltage current resistance,etc. It has stable and high reliability with an anti-drop handle. This instrument has a backlight, user-friendly read the measure value display in a dark place. It can be used to measure DC and AC voltage, DC current resistors, diodes, transistors and circuit continuity test. Follow all safety and operating instructions to ensure that the meter is used asfely and is kept in good operating condition

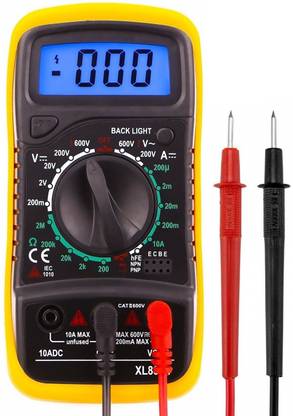

Corslet Digital Multimeter XL830L Multi Meter Digital Meter for Electronics & Mobile Multimeters Digital Multimeter Voltage Tester Digital Multimeter (Yellow 2000 Counts)
