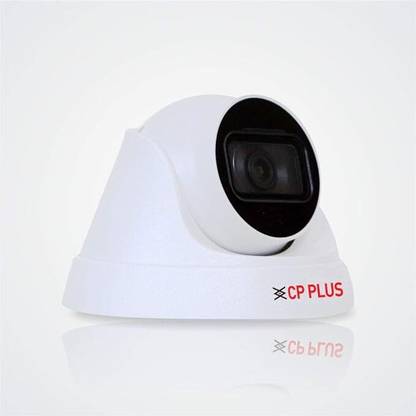

CP PLUS CP-UNC-DA21PL3-V3-0280 2MP IP Dome Network CCTV Security Camera (1 Channel)

Price: Not Available

Currently Unavailable

Repair And ReplacementKnow More

Highlights

For Indoor Security Camera Use
Night Vision Feature
No of Channels: 1

Description

# Instastream provides up to 70%more savings in bandwidth and storage costs than H.265 # Smart IR For even infrared illumination #ONVIF Conference #PoE Support for power &data transfer over ethernet cable #Edge base analytic support* #Cloud Health Monitoring System(HMS) Support* #Online device upgrade #Android & iOS Smart Phone Mobile App #Web view & CMS Support for remote surveillance .

Specifications

General

Sales Package	1
Model Number	CP-DA21-PL3
Number of Channels	1
Camera Type	Dome Camera
Video Output	Instastream/ H.265/Smart H.264+/H.264/ H.264B/, (only supported by the sub stream, MJPEG )
Video Recording Resolution	1920 x 1080
Video Recording Frame Rate	25/30fps

Product Details

Video Formats	H.264+ / H.265 / H.265+
Display Frame Rate	Main Stream: 1920 × 1080 (1 fps–25/30 fps), Sub stream: 704 × 576 (1 fps–25 fps) 704 × 4
Record Modes	Time scheduled
Other Video Features	Instastream/ H.265/Smart H.264+/H.264/ H.264B/ MJPEG (only supported by the sub stream)
Image Sensor	1/2.8” 2MP Progressive scan CMOS (0.9071 centimeters)
Shutter Type	Auto / Manual
Image Resolution	1920 x 1080
IR Distance	30 m
Number of IR LEDs	1
Other Camera and Imaging Features	iimage Rotation-0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
HDD Available	No
Compatible Devices	PC/Laptop Monitor
Power Source	DC
Remote Connectivity	IP
Sound Triggered Recording	No
Storage Type	HDD
Cry Detection Sensor	Yes
Horizontal View Range	102 m
Camera Resolution	2 mp

Power And Connectivity Features

Other Connectivity Features	Android phone
Number of POE Ports	1
Power Requirement	DC12V, PoE (802.3af)
Power Consumption	5 W
Other Power Features	1.4W (12V DC); 2.2W (PoE)

Additional Features

Operating Temperature	-40°C to +60°C (-40°F to +140°F)/less than ? 95% degree C
Weather Durability Standards	ip 67
Other Convenience Features	Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution;trusted upgrade
Material	Metal, Plastic
Model Name	CP-UNC-DA21PL3-V3-0280 2MP IP Dome Network CCTV
Color	White
Lens Size	2.8 mm
Angle of View	84 degree
Mounting Type	Dome
Other Features	6 Users (Total bandwidth: 36 M)

Dimensions

Width	130 mm
Height	110 mm
Depth	120 mm
Weight	300 g
Other Dimensions	85.5 mm × ?109 mm

Warranty

Warranty Summary	Repair And Replacement
Warranty Service Type	Repair And Replacement
Covered in Warranty	Repair And Replacement
Not Covered in Warranty	Physical Damage
Domestic Warranty	12 Months
