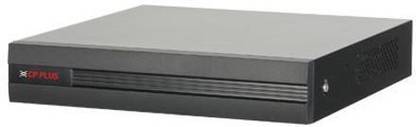

CP PLUS CP-UVR-0801E1 8Ch. 1080N Digital Video Recorder Security Camera (8 Channel)

Price: Not Available

Currently Unavailable

1 YEARKnow More

Highlights

For Digital Video Recorder Use
Night Vision Feature
No of Channels: 8

Description

Supports HDCVI/AHD/TVI/CVBS/IP video inputs Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth Supports Full-channel AI-Coding Instastream/H.265 dual-stream video compression Up to 4 channels video stream (analog channel) SMD Plus. Support 1 SATA HDD up to 6TB, 2 USB Ports 1 HDMI / 1 VGA Simultaneous Video Output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro

Specifications

Warranty

Warranty Summary	1 YEAR
Warranty Service Type	Package send to seller before warranty with invoice
Covered in Warranty	MANUFACTURING DEFECT
Not Covered in Warranty	PHYSICAL DAMAGE AND BURNED
Domestic Warranty	2 Year

Power And Connectivity Features

Network Interface Type	RJ45
Number of USB Ports	2
USB Type	2
Number of Ethernet Ports	1
Audio Interface	G.711A, G.711U, PCM
Power Requirement	DC12V/1.5A
Power Consumption	7 W
Other Power Features	-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH

General

Sales Package	CP-UVR-0801E1 DVR (WITHOUT HDD), POWER ADAPTER 12V, MOUSE, SATA AND SATA POWER CABLE NAD HDD SCREWS, USER MANUAL
Model Number	CP-UVR-0801E1-CV2
Number of Channels	8
Camera Type	BNC AND IP NETWORK
Video Output	HDMI, VGA
Video Recording Resolution	1920 X 1080
Video Recording Frame Rate	25FPS

Additional Features

Mobile Compatibility	IOS, Android
Operating Temperature	-10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH degree C
Material	Metal + plastic
Model Name	CP-UVR-0801E1 8Ch. 1080N Digital Video Recorder
Color	Black

Dimensions

Width	198 mm
Height	203 mm
Depth	41.5 mm
Weight	350 g
Other Dimensions	198 mm × 203.0 mm × 41.5 mm

Product Details

Video Formats	H.264+ / H.265 / H.265+
Display Frame Rate	Main Stream: 8-channel: the 1st channel 1080N/720p(1fps–25/30fps), others 1080N/720P (1fps–15fps); 960H/D1/CIF/(1fps–25/30fps) Sub stream: 8-channel: CIF (1fps–7fps)
Record Modes	Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Other Video Features	1920×1080, 1280×1024, 1280×720
Image Resolution	1080N; 720p; 960H; D1; CIF
HDD Available	No
HDD Type	SATA 1
Compatible Devices	Mobile
Audio Output	Speaker & Microphone
USB Port Present	Yes

Ratings & Reviews

★

18 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Value-for-money

Good

Bhoopendra kantt Customer

Certified Buyer, Mathura

Mar, 2023

Permalink

Report Abuse

Questions and Answers

Q:It's suported 5MP camera

A:Yes

navin agrawal

Flipkart Seller

Report Abuse

Q:It will support 8 mp camera

A:No

Third Eye Security

Flipkart Seller

Report Abuse

Q:sir using 1tb hard disk

A:Sales Package ONE DVR::ONE SATA CABLE::HARD DISK SCREW::DRIVER CD::ONE ADAPTER::USER MANUAL::ONE MOUSE

BEST SELLER IN

Flipkart Seller

Report Abuse

Q:Whether its support for Proline 1.3mp outdoor bullet camera?

A:yes it will support

chethan gowda

Certified Buyer

Report Abuse

Q:Only dvr price or with hardisk

A:ONLY DVR

AaviEnterprise

Flipkart Seller

Report Abuse

Q:Is 4mp camera support in CP plus dvr

A:No only 2.4mp

AtifElectronicsGoods

Flipkart Seller

Report Abuse

Q:2.5mp camera supported

A:2.4 MP CAMERA SUPPORT

PDCCTV

Flipkart Seller

Report Abuse

Q:Is there hard disk inside

A:No

UNCOSTLYTECH

Flipkart Seller

Report Abuse

Read other answers

Q:Can I use 2.4Mp camera for this dvr

A:Yes

SHIVAM SRIVASTAVA

Certified Buyer

Report Abuse

Q:Does it support 5mp camera

A:Yes

SHIVAM SRIVASTAVA

Certified Buyer

Report Abuse

All questions+
