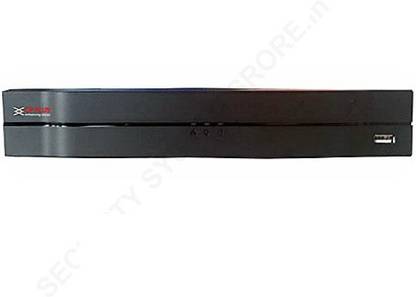

CP PLUS CP-UVR-0801E1-V3 DVR  (8 Channel)

CP-UVR-0801E1-V3 8 Ch. Tribrid 720P HDCVI DVR Support HDCVI/Analog/IP Video input All channel 1080N/720P Realtime Recording H.264 dual-stream Video Compression HDMI / VGA Simultaneous Video Output Support 1 SATA HDD up to 6TB, 2 USB2.0 Mobile Software: iCMOB, gCMOB, wCMOB CMS Software:KVMS, KVMS Pro ProcessorEmbedded processor Operating SystemEmbedded LINUX Two-way TalkReuse audio input/output channel 1 User InterfaceGUI Video Input8 channel, BNC Video Output1 HDMI, 1 VGA Video StandardAnalog: NTSC/PAL, HDCVI: 1080P/720P HDCVI Camera, IP: 8+2 up to 5Mp CompressionH.264 / G.711 Video Resolution1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768, 800×600 Video RecordingMain Stream: 1*1080N(1~25/30fps)+7*(1~12fps)/1*720P(1~25/30fps)+7*(1~15fps)/960H/D1/HD1/BCIF/CIF/QCIF (1~25/30fps), Extra Stream: CIF/QCIF(1~7fps) Video Display Split1/4/8/9 Privacy Masking4 rectangular zones (each camera) Audio Input1 channel, RCA Audio Output1 channel, RCA Motion DetectionSupports Video LossSupports Camera BlankSupports Hard Disk1 SATA port, up to 6TB Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips Recording ModeManual, Schedule(Regular(Continuous), MD), Stop Search ModeTime/Date, MD & Exact search (accurate to second) PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom Backup ModeUSB Device/Internal SATA burner/Network Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RS485 Max User Account128 users Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec Smart PhoneiPhone, iPad, Android, Windows Phone ProtocolsHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P, ONVIF Version 2.4 conformance EthernetRJ-45 port (10/100M) Power SupplyDC12V/2A Power Consumption10W(without HDD) Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa Dimensions260mm × 220mm × 40mm Weight0.75Kg(without HDD)
