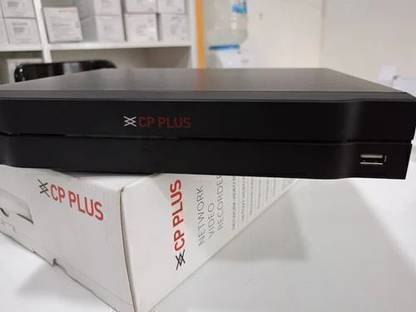

CP PLUS 4Ch. NVR Network Video Recorder (CP-UNR-104F1) Security Camera
CP PLUS 4Ch. NVR Network Video Recorder (CP-UNR-104F1) Security C...more
Buy at ₹5,841
Apply offers for maximum savings
₹5,841
Lowest price for you
OR
₹195 x 36m
Pay ₹7,010
Bank offers
Bank offers
₹308 off
View EMI offers
Shop with peace of mind
Product highlights
Network Video Recorder
Without HDD
With Night Vision
HDD Storage
All details
Features, description and more

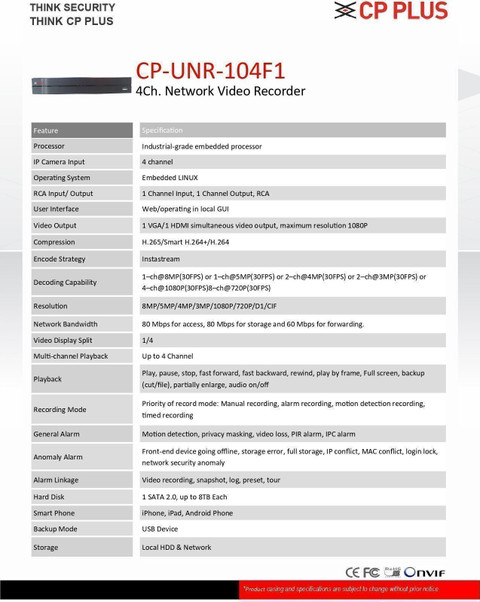

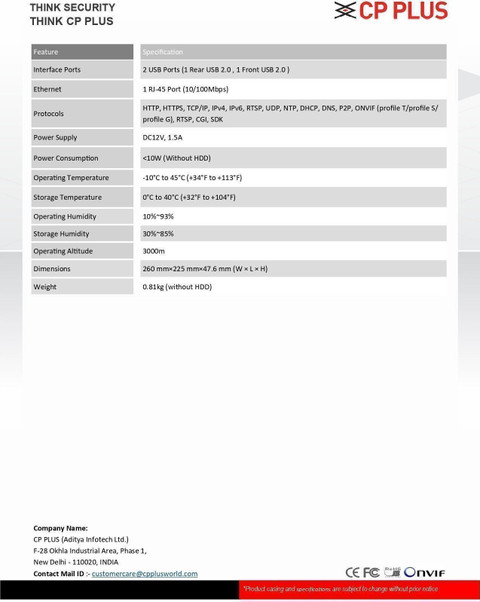

Specifications
Description
Warranty
Manufacturer info
Show More
Power and Connectivity Features
Network Interface Type
1 RJ-45 port (10/100Mbps)
Number of USB Ports
2
USB Type
2
Number of Ethernet Ports
1
Audio Interface
PCM/G711A/G711U/G726/AAC
Alarm Interface
Video recording, snapshot, log, preset, tour
Other Connectivity Features
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK, Interface Ports 2 USB Ports (1 Rear USB 2.0 , 1 Front USB 2.0 )
Power Requirement
DC12V, 1.5A
Power Consumption
10 W
Other Power Features
<10W (Without HDD)
In the Box
1 network video recorder
General
Brand
CP PLUS
Model Number
CP-UNR-104F1
Type
Network Video Recorder
Product Type
Standalone
Number of Channels
4
Camera Type
IP
Video Output
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P
Video Recording Resolution
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Video Recording Frame Rate
25fps/30fps
Additional Features
Alarm Action
Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
Mobile Compatibility
Yes
Application Support
Mobile Software: iCMOB, gCMOB, CMS Software: KVMS Pro
Operating Temperature
-10°C to 45°C (+34°F to +113°F) degree C
Other Convenience Features
Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T/profile S/ profile G), RTSP, CGI, SDK
Material
Metal
Model Name
4Ch. NVR Network Video Recorder (CP-UNR-104F1)
Color
Black
Mounting Type
Wall Mount, In a Rack, Flat Surface
Key Features
4Ch. Network Video Recorder, Support 4 channel IP camera input, Up to 8MP resolution preview and playback, Support Multi-brand network cameras, Max 80Mbps Network Bandwidth
Other Features
Processor Industrial-grade embedded processor
Dimensions
Width
260 mm
Height
225 mm
Depth
48 mm
Weight
0.81 g
Other Dimensions
260 mm×225 mm×47.6 mm (W × L × H)
Product Details
Video Formats
Instastream/H.265/Smart H.264+/H.264 codec decoding
Recording Formats
80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding.
Display Frame Rate
25fps/30fps
Record Modes
Priority of record mode: Manual recording, alarm recording, motion detection recording, timed recording
Other Video Features
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF, Play, pause, stop, fast forward, fast backward, rewind, play by frame, Full screen, backup (cut/file), partially enlarge, audio on/off
Image Sensor
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF
Image Resolution
Up to 8MP resolution preview and playback
Other Camera and Imaging Features
Support Multi-brand network cameras
HDD Available
No
HDD Type
SATA
System Requirements
1 SATA 2.0, up to 8TB Each
Other Performance Features
Processor Industrial-grade embedded processor, Operating System Embedded LINUX
Compatible Devices
MobileMonitorPC/LaptopTablet
Power Source
DC
Remote Connectivity
IPCloudLan CableWi-Fi
Audio Output
Speaker & Microphone
Storage Type
HDD
USB Port Present
Yes
Camera Resolution
8 mp
HDD Capacity
8
Night Vision
Yes
Maximum Record Time
24 hr
Remote Control
Yes
See more

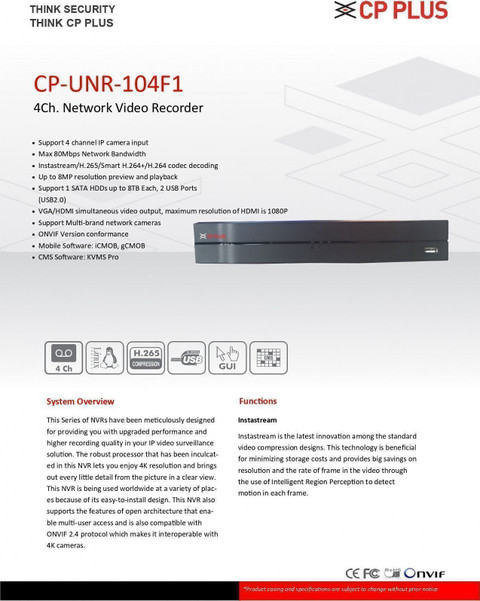

Support 4 channel IP camera input Instastream/H.265/Smart H.264+/H.264 codec decoding Up to 8MP resolution preview and playback Max 80Mbps Network Bandwidth Support 1 SATA HDDs up to 8TB Each, 2 USB Ports (USB2.0) VGA/HDMI simultaneous video output, maximum resolution of HDMI is 1080P Support Multi-brand network cameras ONVIF Version conformance Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro
See more
Warranty Summary
na
Covered in Warranty
MANUFACTURE DEFAULT
Not Covered in Warranty
PHYSICAL DAMAGE
Warranty Service Type
REPAIR AND REPLACEMENT
Generic Name
Home Security Cameras
Country of Origin
India
Name and address of the Manufacturer
CP PLUS
Name and address of the Packer
COMPUTER CLINIC
