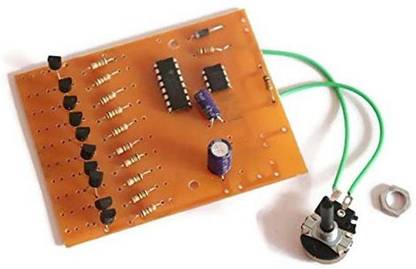

Creative Tech 10 Channel led chaser circuit with adjustable speed, Decad Counter Circuit for Electronic Projects, CD4017, 555 timer Electronic Components Electronic Hobby Kit

This Circuit is based on LED flashing,If you want to build a 10 LED Chaser circuit we suggest this circuit first. It uses popular IC is a simple IC-4017 decade counter and IC-555. When we power the circuit, LEDs start glowing one by one for a defined time period. Means first LED Q1 glows and then Q2 glows and Q1 turned OFF and then Q3 glows and Q2 turned OFF and so on. When we change resistance of variable resistor then speed of LED's increase. Because frequency of 555 timer increases and this increases frequency signal is directly connected to counter's trigger pin. So that counter changes its state faster ADDITIONAL INFORMATION - 3. Full documentation, includes Circuit diagrams, Testing document, PCB Specifications, Reading Material . 4. Documentation will be provided on e mail 5. Power Source: We will not provide any Battery with all the kits as they are not allowed in the shipments by Air.
