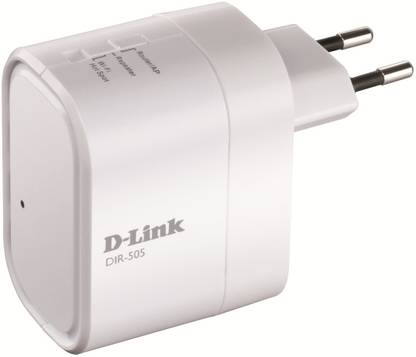

D-Link DIR-505 All-in-one Mobile Companion Router
Share

D-Link DIR-505 All-in-one Mobile Companion Router  (White)

Price: Not Available
Currently Unavailable
Warranty
1 Years Domestic Carry In Warranty
Highlights
  • Type: Wireless Without Modem
  • 150 Mbps Speed
  • Frequency: 2.4 GHz
  • Internal Antenna
Important Note
  • This Router Does Not Include Modem and works well with Cable Broadbands
Description

Simplifying technology to suit your daily needs, D-Link introduces the DIR-505 All-in-one Mobile Companion Router that crafted with precision for optimum performance delivering high speed and

Up to 150Mbps Data Rate

Experience data rates up to 150Mbps with this D-Link Mobile Router that gets your job done in a matter of seconds.

D-Link One-Touch AP Configuration

With just a touch, this device lets you create a private wireless network for a secure data transfer connection.

WPS Button Design for Easy and Secure Setup

Manufactured with a button to turn on and turn off the WPS, this device makes it extremely simple and easy to keep your connection safe.

USB for Media Sharing

Built with a USB port, this device lets you share data with ease as you plug-in your USB drive into the port.

Fast Ethernet Port

Ensuring an unbelievably fast data rate, this router is built with a fast Ethernet port for optimum performance.

SharePort Mobile

With the SharePort Mobile App for mobile devices, you can play and access files through the web interface.

Quick Router Setup Mobile iOS App

With a quick router setup mobile iOS app, installing and using the device turns out to be easier than ever.

SharePort Web Access

The device also comes with a SharePort Web Access that is supported in the Wi-Fi Hotspot and router modes.

Additional Features

Integrated with Support Router/Access Point, Repeater and Wi-Fi HotSpot operation modes, this device ensures maximum flexibility to suit your requirements.

Read More
Specifications
General
Type
  • Wireless Without Modem
Installation Features
  • Universal Plug and Play (UPnP) Compliant
Model
  • DIR-505 All-in-one Mobile Companion
Part Number
  • DIR-505
Controls
  • Reset Button, WPS button
In The Box
  • DIR-505 Device, Ethernet Cable, Quick Installation Guide, Wi-Fi Configuration Note
LED Indicator
  • Status / WPS
Color
  • White
Brand
  • D-Link
Compatible ISP
  • Hathway,ACT,Sify,Airtel ,You,Spectranet
Operating Conditions
Operating Humidity
  • Operating: 0 % - 90 % Non-condensing, Storage: 5 % - 95 % Non-condensing
Temperature
  • Operating: 0DegC - 40DegC, Storage: - 20DegC - 65DegC degree C
Power
Power Supply
  • AC 100 - 240 V, 50/60 Hz
Supported Protocols
Standard IEEE
  • IEEE 802.11b/g/n, IEEE 802.3u, IEEE 802.3
Network Features
Frequency
  • 2.4 GHz
Frequency Band
  • Single Band
Speed
Wireless Speed
  • 150 Mbps
LAN/WAN
  • 1/10/2000
Connectivity
USB
  • USB 2.0
Antennae
  • Internal
Number of USB Ports
  • 1
Security
Encryption
  • Wi-Fi Protected Access (WPA/WPA2), WEP 64/128-bit Encryption, WPS (PBC/PIN)
Firewall
  • Network Address Translation (NAT), Stateful Packet Inspection (SPI), DMZ Support, MAC Address Filtering, Website Filtering
Additional Features
Certification
  • CE Certification, FCC Certification, Wi-Fi Certification, C-Tick Certification, IC Certification, UL Certification, DLNA Certification
Dimensions
Height
  • 68 mm
Width
  • 42 mm
Depth
  • 51 mm
Weight
  • 113.4 g
Warranty
Service Type
  • Carry In
Warranty Type
  • Carry-In . Support Toll Free No.-1800-233-0000. Email ID- helpdesk@in.dlink.com
Covered in Warranty
  • Manufacturing Defects
Domestic Term
  • 2 Years
Not Covered in Warranty
  • Physical Damage Cases will not be Entitled for Warranty
Warranty Summary
  • 1 Years Domestic Carry In Warranty
Ratings & Reviews
3.9
921 Ratings &
202 Reviews
  • 5
     432
  • 4
     242
  • 3
     102
  • 2
     44
  • 1
     101
1

Stops Working after a few months of constant use

I bought this product a year back, initially it was perfect so I bought 2 more one each for my parents and in laws, now its causing problems in all 3 houses.The connection with the main router frequently drops and it has to be switched off for atleast a day for it to start working again.My guess is one of the components heats up and expands causing it to malfunction.I am now so Frustrated with this extender I am buying a netgear range extender.
READ MORE

Anirudh Narayan

May, 2014

22
12
Report Abuse
5

Terrific

very bad
READ MORE

Arshad Jamal

Certified Buyer, Varanasi

May, 2018

3
0
Report Abuse
1

Never buy this

After spending 2-3 days in order to setup this repeater, it ended up in complete failure. Doesnt perform the task of what it is supposed to which is to extend the range of your Wi-Fi signal. Now I am using it as mobile charger by connecting to USB port. Too expensive for a mobile charger :)

Customer support is almost non-existent and manual provided for setup doesnt help at all. I would rather suggest people to go for Wireless Router without Modem which should do the trick of extending wirel...
READ MORE

Vishant Shenoy

Dec, 2013

9
5
Report Abuse
5

Excellent Router

I bought this product to boost the signal of Cisco Valet M10 Also to use DLINK as a stand alone DSL router .

Well I have to admit this router solves the purpose... I use this as a standalone wi-fi router in my 1100sft apartment and the signal is good in all the rooms ...

Pros :
1) Router Mode : You can setup WI-FI connection in less than 15 minutes and save the config settings so that next time you comeback to Router mode you can directly use the pre-configured settings by just import...
READ MORE

Rajesh Yeluri

Certified Buyer

Oct, 2013

5
1
Report Abuse
4

Awesome Device But only for Apple EcoSystem as per my initial review

This is a wonderful device for the price we pay for. A nearest competitor to provide the features of this device would be a double in cost and size. I purchased this device with sole intention of streaming media for my iPad due to its limited storage space. I have tested this device with iPad (IOS) and Samsung Galaxy S3 Mini (Android). However I faced lot of issues with very minimal results when this was paired with Android. However the results were simply awesome when paired with iPad. I cou...
READ MORE

Abhilash Peter

Certified Buyer, Bangalore

Mar, 2013

11
8
Report Abuse
2

OK

Not as good as it appears to be. The repeater mode keeps dropping off from the main wifi if you give it the same SSID. After changing the name it maintains connectivity better but still devices going through this become slow. Nice to make an internet wifi. but not as good if you want to use as repeater.
READ MORE

Chintan Desai

Certified Buyer, Mumbai

Oct, 2013

7
4
Report Abuse
1

Not as good as the other reviews suggest

I bought this router on 28th December 2013. I was disappointed to find that the signal range was very poor. It would simply not connect to the main router. Also, after using it for close to 45 days, it has now completely stopped working. I hope I can get it replaced with a different product.
READ MORE

Raviraj Padwal

Certified Buyer, Pune

Feb, 2014

2
0
Report Abuse
1

not worth it

i could not connect this to my existing D Link router and i could not get any answer. it is just lying waste now.
READ MORE

tintin

Certified Buyer

Dec, 2013

2
0
Report Abuse
5

Excellent Product

Works exactly as designed (Wireless Router/Access Point/Repeater/WiFi Hotspot). Tested all the modes and it works fine. The only difference being, it had a lot of configuration issues with the Version 1.3 firmware that came with it when it was delivered. While I struggled with it, I searched online and there were multiple comments saying that these issues were sorted out after upgrading the firmware to 1.5 from the D-Link US support site.

Overall, a great product, and true value for money if...
READ MORE

Ajay Ashok

Nov, 2012

2
0
Report Abuse
5

This was a savior

Unreliable cable internet connection prompted me to buy this device. I got a 3G dongle that provided both Wifi and Modem connections. However, my office laptop wasn't enabled to accept Wi-fi or even USB. So, to make this work, I had to find a device that could take the Wi-fi signal and convert it to a wired network connection. I searched a lot but most said this wasn't possible. Enter the D-Link DIR-505. I noticed that it has a 'repeater' mode and also a Ethernet port that accepted the usual ...
READ MORE

TRISHUL PANI MUKHERJEE

Certified Buyer, Kolkata

Jul, 2014

6
4
Report Abuse
+
All 202 reviews
