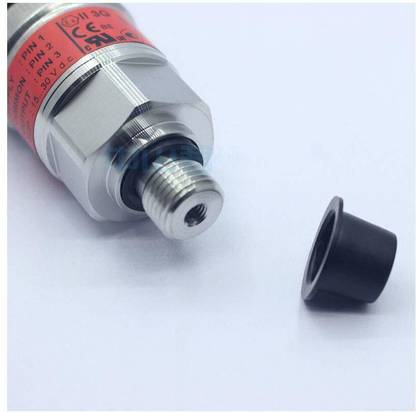

The compact pressure transmitter, type MBS 3000, is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. The compact heavy duty pressure transmitter MBS 3050 with integrated pulse-snubber is designed for use in hydraulic applications with severe medium influences like cavitation, liquid hammer or pressure peaks and offers a reliable pressure measurement, even under harsh environmental conditions.
Read More
Specifications
General
Brand
Danfoss
Model Number
MBS 3000 (Range 0 to 25 bar) Pressure Transmitter
Suitable For
Commercial Use, Industrial Use
Additional Features
Other Features
Manufacturer: Danfoss, Model: MBS 3000, Measuring Range: 0 to 25 bar, Accuracy: < ±0.5% FS, Operating temperature: -40°C to +85°C, Supply voltage: 9 to 32 V DC, Output Signal Type: 4 to 20 mA , 2 Wire, Analog 4~20mA Output, MOC : Stainless Steel Body, Response Time Max: < 4 ms, Enclosure Rating: IP65
Dimensions
Length
6 inch
Warranty
Warranty Summary
Manufacturer Warranty
Service Type
NA
Covered in Warranty
Yes
Not Covered in Warranty
NA
