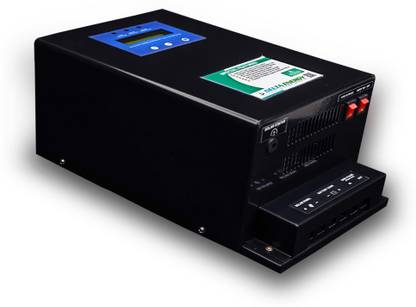

delta energy Orion 40 Plus (40 Ampere 12/24/36/48V) Auto Voltage Range MPPT Solar Charge Controller

delta energy Orion 40 Plus (40 Ampere 12/24/36/48V) Auto Voltage Range MPPT Solar Charge Controller

Price: Not Available
Currently Unavailable
Highlights
  • Color: Black
  • Automatic Mode: Yes
  • LCD Display: Yes
  • Warranty: One year
  • Charging Status: Yes
  • Solar/Grid Status: Yes
  • Efficiency: 98.9%
Description
DELTA ENERGY NEON -40(HV) Solar MPPT Charge Controllers are multi voltage range devices that are unique in its kind in the market. The same device can be used for battery banks ranging from 1 Battery (12V) up to a battery bank of 4 batteries (48V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A.The Max PV panel input open circuit voltage up to 185V makes it easier to group the panels conveniently. Also, sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home or office.
Read More
Specifications
In The Box
Sales Package
  • 1 Unit MPPT Charge Controller and User Manual
General
Brand
  • delta energy
Model Number
  • Orion 40 Plus (40 Ampere 12/24/36/48V) Auto Voltage Range
Type
  • MPPT
Nominal Battery Voltage
  • 12/24/36/48V Auto Voltage Range
Maximum Output Current
  • 40 Ampere
Maximum Input Power
  • 2100 W
Charge Stage
  • 4 Stage Charging Algorithm: Customizable, Bulk Absorption, Float and Equalization points.
Adjustable Regulation Voltage
  • Yes
Load Control
  • Yes
Additional Features
  • Battery at 12V: Voc: 30v -120v, Max. Connectable Panels: 500W *, Battery at 24V: Voc: 50V -150V, Max. Connectable Panels: 1000W *, Battery at 36V: Voc: 70V -160V, Max. Connectable Panels: 1500W *, Battery at 48V: Voc: 100V -185V, Max. Connectable Panels: 2000W
Dimensions
Width
  • 19 cm
Height
  • 30 cm
Depth
  • 11 cm
Weight
  • 2 kg
Warranty
Service Type
  • Delta Energy Solutions, malappuram Dtrct, kerala, India- 07510500070
Covered in Warranty
  • Manufacture defects, Hardware faults and Software Faults.
Not Covered in Warranty
  • Physical Damages
