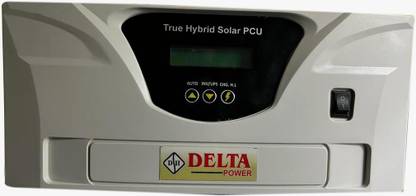

DELTA POWER LITHIUM 2KVA/24V SOLAR PCU LITHIUM 2KVA/24V PCU Pure Sine Wave Inverter

OFF-GRID SOLAR HYBRID PCU KEY FEATURES 1. Dual source of charging from Solar Power as well as from Grid Power. 2. Power card with inbuilt PWM based solar charge controller of 50A for maximum utilization of solar power. 3. Intelligently selection of battery boost voltage to avoid un-necessary heating of battery during charging. 4. Intelligently selection of battery low shutdown for longer backup according to load conditions. 5. Regular priority of Solar Power to give maximum benefits from solar energy to run the load or charge the battery. 6. 30% AVR function below 180V Grid Input. 7. All selection switch on front side, no switch at back side. 8. Storage of Solar Power consumed from the day of installation. 9. CC & CV mode for every 0.1V increment of battery voltage. 10. Priority to maintain gravity of battery in CV mode with different time zone at regular interval of time. 11. Maximum usage of Solar Power to minimize the electricity bill and being eco-friendly. 12. Display maximum and useful parameters on LCD according to customer needs. 13. Pure Sine Wave output with less harmonic distortions. 14. Battery low cut off and overcurrent sensing with auto retries. 15. Double stage MOSFET over current protection at priority. 16. Thermal trip with auto recovery. 17. Reverse current protection from battery to solar in absence of solar power. 18. Grid Power utilization according to presence of Solar Power. 19. Critical parameters setting according to battery & grid conditions. 20. Upgradable to IOT functioning. DISPLAYING PARAMETERS ON LCD • Model VA & Capacity • Battery Voltage • PV Charging Current • Grid I/P Voltage • Grid Charging Current • AC Output Voltage • Discharging Current • Load Percentage • Mode UPS/Normal • Battery Status • PV Status • Grid Status • Load Status • Consumed PV Power • Instant PV Power • Thermal Trip • PV Reverse • Short-circuit • Battery Low/High • Grid MCB/Fuse Trip • Battery Overload Trip PROTECTIONS Thermal Trip | Battery High/Low | Short-Circuit | PV Reverse | Grid MCB/Fuse Trip | Overload Trip TECHNICAL SPECIFICATIONS Parameters 900Q 1100S 1600S 2100S Nominal Battery Voltage 12V 12V 24V 24V PV Input 600Wp 800Wp 1400Wp 1600Wp No Load Output Voltage 230V ± 2% 230V ± 2% 230V ± 2% 230V ± 2% Full Load DC Current 50A ± 1.0A 67A ± 1.0A 55A ± 1.0A 70A ± 1.0A Full Load O/P Voltage ?180V ?180V ?180V ?180V Output Voltage Waveform Quasi Sine Wave Pure Sine Wave Pure Sine Wave Pure Sine Wave PWM Charge Controller 30A 45A 45A 45A Input AC Voltage (Normal) 90V-290V ± 2% 90V-290V ± 2% 90V-290V ± 2% 90V-290V ± 2% Input AC Voltage (UPS Mode) 145V-260V ± 2% 145V-260V ± 2% 145V-260V ± 2% 145V-260V ± 2% Change Overtime (Maximum) ? 7msec ? 7msec ? 7msec ? 7msec Grid Charging Current 14.5A ± 1.0A 14.5A ± 1.0A 14.5A ± 1.0A 14.5A ± 1.0A Default Boost Voltage 14.4V ± 0.2V 14.4V ± 0.2V 28.8V ± 0.2V 28.8V ± 0.2V Float Voltage 13.7V ± 0.2V 13.7V ± 0.2V 27.4V ± 0.2V 27.4V ± 0.2V AVR Range in Mains Mode 30% Extra ? 180VAC 30% Extra ? 180VAC 30% Extra ? 180VAC 30% Extra ? 180VAC Battery Low Alarm 10.6V ± 0.2V 10.6V ± 0.2V 21.2V ± 0.2V 21.2V ± 0.2V Default Battery Low Cut 10.2V ± 0.2V 10.2V ± 0.2V 20.4V ± 0.2V 20.4V ± 0.2V Overload Protection ? 51A ± 1.0A ? 68A ± 1.0A ? 56A ± 1.0A ? 71A ± 1.0A Short-Circuit Protection Yes Yes Yes Yes Thermal Protection ? 95?C ? 95?C ? 95?C ? 95?C PV Reverse Protection Yes Yes Yes Yes Grid MCB/Fuse Trip Yes Yes Yes Yes CRITICAL PARAMETERS SETTING PROCESS Parameter (Per Battery) Default Value Min - Max Range Battery Boost Voltage 14.4V 13.8V – 14.5V Battery Low Cut Off Voltage 10.2V 10.0V – 11.0V Grid Charging Current 14.5A 0A – 15A Steps to set critical parameters:- 1. Long press of High/Low Charging switch until LCD shows “Set Battery”. 2. Press switch Auto for increment & UPS/Normal for decrement the value of Boost Voltage if required. 3. Press High/Low to change next parameter. 4. Repeat step 2&3 for Battery Low Cut & Grid Charging Current Parameter. 5. Press High/Low to save parameters and EXIT from the same switch. PRIORITY OF SOLAR POWER AS PER GRID POWER 1. If PV Current < 8A, battery will charge from Solar as well as from Grid. 2. If PV Current is between 12A-16A, Grid will be bypassed but no charging. 3. If PV Current > 20A, Grid will be cut by PV till battery voltage below 11.8V. 4. If PV Current > 3A & Batt Volt > Boost Volt, Grid will be cut by PV & load on battery.
