DHRUV-PRO 12V 24V PIR Sensor LED Dimmer Switch Motion Timer Function Wired Sensor Security System
DHRUV-PRO 12V 24V PIR Sensor LED Dimmer Switch Motion Timer Funct...more
Shop with peace of mind
All details
Features, description and more
Specifications
Description
Manufacturer info
All details
Features, description and more
Specifications
Description
Manufacturer info
Show More
In the Box
1
General
Brand
DHRUV-PRO
Model Number
12V 24V PIR Sensor LED Dimmer Switch Motion Timer Function
Wired/Wireless
Wired
Number of Sensors
1
Brand Color
Black
Display Type
LED
Audible Alarm
NA
Installation Type
Wall Mount
Detection Range
20 ft
Minimum Alarm Distance
1 m
Maximum Alarm Distance
20 m
Additional Features
Other Features

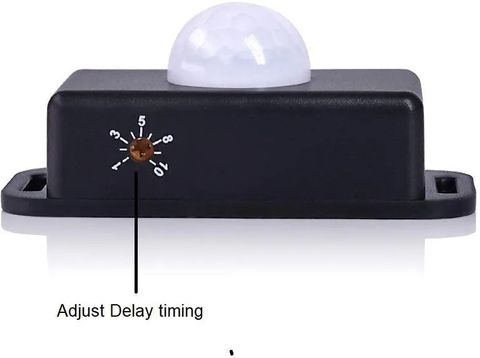

Infrared detection controller, adopt infrared detection way to control load switch, LED Lighting motion sensing switch which provides 1 to 10 minute OFF delay timing function (adjustable), The sensor switch activates ON when a body in motion enters the field of view with an ON time hold that is adjustable from 1 to 10 minutes after motion has ceased, PIR (Passive InfraRed, IR) sensor has an effective range of 16 feet and diminished sensing of a moving human body to 8 meter, The field of view of the PIR Dome Lens is 60 degrees nominal
See more

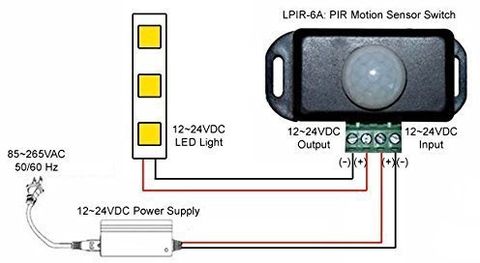

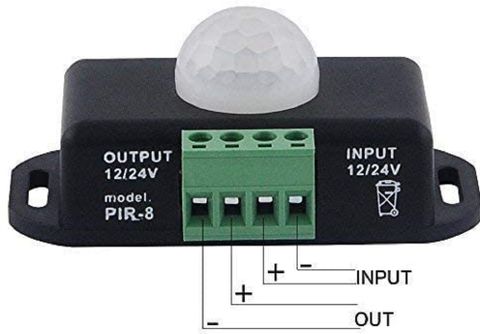

Product description Great for small 12 volt DC solar panel LED Lighting systems to conserve battery power; also well suited for occupancy LED lighting control and security LED Lighting systems. See the additional information and specification sheet in our listing pictures for more details. Specifications: Power supply voltage: 12-24V Output voltage: 12-24V Max load current: 6A Induction range: 8m Delay time: 1-10min (adjustable) Working temperature: -20-60 degrees Celsius Direction for use: The human body induction switch is a kind of infrared detection controller, adopt infrared detection way to control load switch. Users can according to actual needs, installed the human body sensors in the appropriate environment. Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power; When detected somebody, the load light will bright, when people leave time up to the setting of the delay time, the load lights will automatically turn off. Controller signal output line and input line should be connected correctly. Package including: 1 x PIR Switch 1 x Manual sheet
See more
Generic Name
Sensor Security System
Country of Origin
India
Name and address of the Manufacturer
Dhruv enterprises
Name and address of the Packer
Dhruv enterprises
