DHRUV-PRO PIC ICD2 PICKit2 PICKIT3 Universal Programming Adapter Programmer Board Electronic Components Electronic Hobby Kit

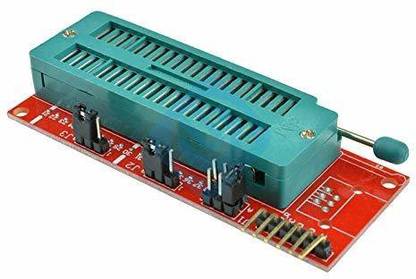

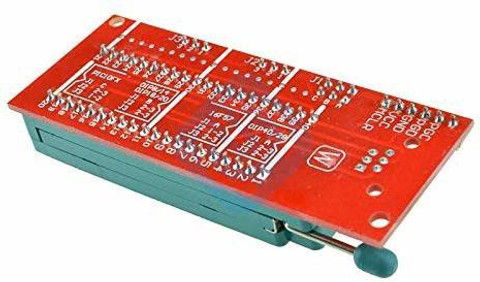

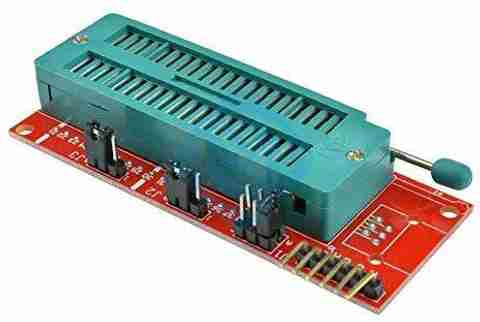

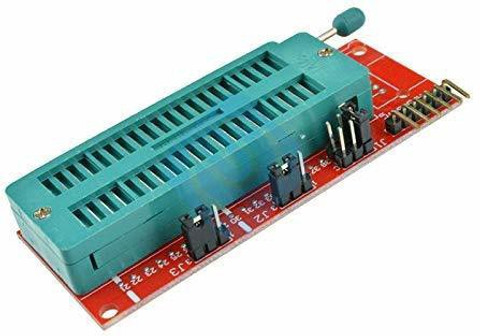

The PIC ICD2 PICKit2 PICKIT3 Universal Programming Adapter Programmer Board is designed to work in conjunction with the popular PICkit 2 or PICkit3 programmer. Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28 / 40P (A). This flag line short-circuits cap on the A position. The 8.14,18,20-pin microcontroller aligned on the left 8P / 14P / 18P / 20P flag line (B), shorting cap on the B position. The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat) The seat supports the following programming microcontroller: PIC16/18XX 40PIN Series devices (except 16F59) PIC16/18XX 28PIN Series devices (except 16F57) PIC16/18XX 18PIN Series devices The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX) Package Includes : 1 x PIC ICD2 PICKit2 PICKIT3 Universal Programming Adapter Programmer Board.
