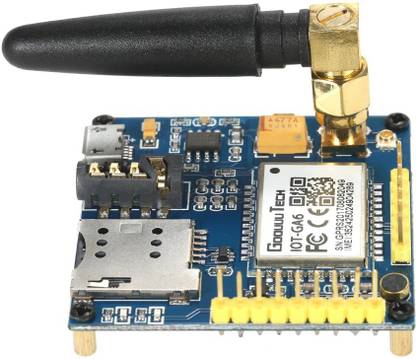

DigiConnect A6 GSM GPRS Module TTL/RS232 Serial Replace SIM900 Telephone Related Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Fiber Glass
Weight: 100

Description

This is professional version serial GSM / GPRS core development board based on GPRS A6 module. It supports dual-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. The board features compact size and low current consumption. With power saving technique, the current consumption is as low as 3mA in sleep mode. It communicates with microcontroller via UART port, supports command including GSM 07.07, GSM 07.05 and Ai-Thinker enhanced AT Commands.

Specifications

In The Box

A6 GSM GPRS Module TTL/RS232 Serial Replace SIM900

General

Brand	DigiConnect
Model Number	A6 GSM GPRS Module TTL/RS232 Serial Replace SIM900
Skillset	Creativity & Imagination
Type	Telephone Related
Minimum Age	3
ROHS Complaint	Yes
Material	Fiber Glass
Age Group	16+ Years
Suitable For Gifting	NA
Key Features	Working frequency: quad-band network, 850 / 900 / 1800 / 1900MHz, Working voltage: 4.8-9VDC(On-board voltage regulator circuit supply power for A6 module), Working Current: maximum of 2A, Sleep Current: 5mA, Onboard Micro SIM card holder, you can install Micro SIM card, Onboard Micro USB interface for external power supply, Communication Interface: TTL serial port / RS232 serial port, Baud rate: 115200bps and it can also be set by AT command., Interface logic voltage: 3.3V, Make and answer phone calls using a headset and electret microphone, Send and receive SMS messages, Send and receive GPRS data (TCP/IP, HTTP, etc.), Be used to test the Ai-Thinker GPRS A6 module, Pin pitch: 2.54mm, Onboard antenna interface: SMA and IPX, Antenna: Suitable for SIM800L GSM modules / FOR Arduino SIM900 GPRS Shield, Antenna: Frequency: 780MHz ~ 960MHz .1710MHz ~ 2170MHz, Antenna gain: +2.0 ± 0.7 dBi @ 880 MHz, +2.0 ± 0.7 dBi @ 1800 MHz, Antenna: S.W.R <= 2.0 @ 2100 MHz ~ 2500 MHz, Antenna: Output Impedance: 50 Ohm, Antenna interface: SMA

Dimensions

Width	4.5 cm
Height	1.5 cm
Weight	100

Power Features

Battery Type	NA
No Of Batteries	0
Battery Size	NA
Power Source	DC
Power Consumption	7
Other Power Features	NA

Ratings & Reviews

4.1

★

9 Ratings &

0 Reviews

5★
4★
3★
2★
1★

Have you used this product? Be the first to review!

Questions and Answers

Q:Can i make it to communicate with computer hyper terminal ? Call feature ? 2G,3G,4G ?

A:It worked with 3G and 4G sim.
