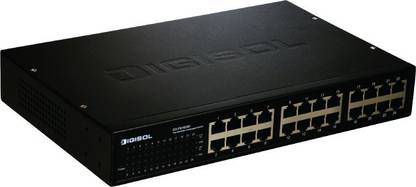

DIGISOL 24 Ports Unmanaged (DG-FS1024D) 24 Ports 100 Mbps Unmanaged Network Switch  (Black)

DG-FS1024D BLAZER 24 x 10/100 Mbps RJ-45 Nway ports Plug and Play installation High-Performance Energy Efficient The DG-FS1024D switch offers 24 x 10/100 Mbps Ethernet ports which gives small workgroups a flexibility to integrate Ethernet and Fast Ethernet in a single network. This Switch also allows for auto-sensing and auto negotiation of highest available speed (10/100 Mbps) and duplex mode, providing an automatic and flexible solution for the network. These intelligent ports detect the network speed and autonegotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex. The DG-FS1024D switch operates without any configuration. The built-in auto-negotiation feature of the Switch will adapt its speed (10/100 Mbps) as per the remote host connected to its port. Each port supports auto MDI/MDI-X operation for uplink ports which eliminates the need for cross over cables or dedicated uplink ports. This feature gives true plug-n-play operation by reducing most common cabling errors during installations. Any port can simply plug to a server or a switch, using the usual straight-through twisted-pair cable. With its backplane capacity of 4.8 Gbps, data transfer is at an average of 200 Mbps per port at full duplex mode allowing every node to perform at their maximum performance. The DG-FS1024D is designed with a truly intelligent powersaving functionality. As soon as the device on the other end is shut down or disconnected from the network, the port is switched to standby mode. This can save power consumption while maintaining performance and functionality. 24 Port Fast Ethernet Unmanaged Switch DG-FS1024D DIGISOL DG-FS1024D is a 10/100 Mbps Ethernet Desktop unmanaged switch designed to enhance network performance. It is also rack-mountable using the kit provided along with the switch. The switch comes with 24 x 10/100 Mbps ports, offering solutions for accelerating bandwidth needs of small Ethernet workgroups. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment. ?Product Features & Compliances ?24 x 10/100 Mbps RJ-45 Nway ports ?Complies with IEEE802.3, IEEE802.3x and IEEE802.1p Standards ? Supports Auto MDI/MDI-X Crossover ?Data transfer speed up to 200 Mbps (Full-duplex) ?4.8 Gbps Backplane ?Plug and Play installation ?Energy Efficient Internal Universal Power Supply
