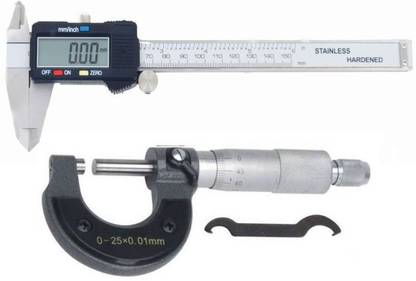

Divinext Combo Digital Caliper 0-150mm + Manual Micrometer 0-25mm Outside Micrometer Screw Gauge Electronic Gauge Ruler Digital Vernier Caliper Wrench Measuring Instrument Tool to Measure Distance Between Two Sides, Outer Diameter, External Dimensions, Inside + Outside + Depth + Step Digimatic Caliper 0–150 mm/0–6 inch Metric/Imperial Dual Reading IP54 Water Resistant Hardened Stainless Steel Micrometer Screw Gauge

DIGITAL CALIPER SPECIFICATIONS: Made of hardened stainless steel Internal, external and height dimensions can be easily and accurately measured Linear capacitive measuring system Zero setting in any position With a small locking thumb screw which locks the jaws in place Base measuring function: Inside, outside, depth and step measuring With easy to read large LCD display Handy conversion chart at the back An ideal tool for a broad range of industrial and automotive applications Measuring range: 0–150 mm/ 0–6 inch Resolution: 0.01mm/ 0.0005 in. Repeatability: 0.01mm/ 0.0005 in. Accuracy: + 0.02 mm/ 0.001 in. (<100 mm), + 0.03 mm/ 0.001 in. (>100 – 150 mm) Maximum measurement speed: 1m/s Power: 1 x 1.5V SR44 (silver oxide cell) battery Size: 240 x 80 x 12mm MICROMETER SPECIFICATIONS: Smooth paint frame Carbide-tipped measuring faces Smooth surface with chrome clear scale Resolution: 0.01mm Locking clamp Friction sleeve locking device to ensure of repeatability Micrometer Type: Outside Micrometers Display Type: Analogue Measuring Range: 0.01 - 25mm Dividing Value / Accuracy / Graduation: 0.01mm Case Size: 14*6.5*2.3cm Instructions for use: 1. Clean the measuring surface before use and correct the zero position. 0-25mm direct alignment zero: 25mm above use the bar gauge aimed at quasi-zero. 2. Zero correction method: If the 0-bit line is not aligned with the baseline, first loose screw with a screwdriver slightly, with a wrench to adjust the baseline position, so that the baseline alignment 0 taste bit line, then tighten the screws. (See instructions for use picture 2) 3. When measuring, the micrometer should be perpendicular to the work piece under test, rotating force measuring device, the measuring surface in contact with the work piece should be rotating gently, when the force measuring device issued a slight click, click ... sound, That is the actual size of the work piece under test. 4. Locking device can be passive measurement of micro-screw back and forth. Relax to the right and lock to the left. (See instructions for use Figure 3) 5. When measuring, the left hand should hold the heat shield to prevent body temperature transmitted to the micrometer, causing measurement error. 6. One end of the wrench can be adjusted zero; the other end can pull the force measuring device. Note: 1. Micrometer is a pr measuring tool, please use it gently. 2. After using in the exposed room please coated with anti-rust oil, and put into the box, placed in a dry and ventilated place. 3. Do not force to turn the differential tube, so as not to damage the accuracy. 4. Do not attempt to remove the micrometer parts or it will be damaged and cannot be used. 5. The length of the micrometer test cycle should be determined according to the specific circumstances of use.
