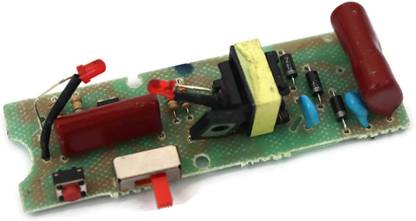

Diycart Mosquito killer circuit High Voltage Generator PCB for DIY PROJECT or mosquito racket board replacement Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: Battery
RoHS Compliant
Material: Fiber Glass
Weight: 200

Description

The working of the Mosquito Killer Bat is very simple. A high voltage power supply is given to the metal mesh. So when a mosquito flies between the Meshes it creates a low resistance path between the meshes so the high voltage creates an ARC through the body of the mosquito which is instantly electrocuted.

Specifications

In The Box

1x mosquito high voltage generator board

General

Brand	Diycart
Model Number	Mosquito killer circuit High Voltage Generator PCB for DIY PROJECT or mosquito racket board replacement
Skillset	Rhythm & Pattern Recognition
Type	Electronic Components
ROHS Complaint	Yes
Material	Fiber Glass
Age Group	16+ Years
Sound	No
Key Features	Diycart Mosquito killer circuit High Voltage Generator PCB for DIY PROJECT or mosquito racket board replacement, Use as Mosquito Killer Bat circuit Replacement, A transformer you can call also pulse transformer is used to step up the oscillating frequency and voltage., DC source and we cannot step up DC. So an Oscillator circuit is used to convert DC to Pulsating AC. The Oscillator circuit consists of a Transistor, capacitors, and resistors.

Dimensions

Width	8 cm
Height	4 cm
Weight	200

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	Battery
Power Consumption	5
Other Power Features	Use as Mosquito Killer Bat circuit Replacement

Questions and Answers

Q:This modul can use inverter

A:This module can only be used in mosquito bat and after installing in mosquito bat it can be charged on electricity or inverter for further use.

Abhishek Joseph Verma

Certified Buyer

Report Abuse

Q:Can identify easily the connection of battery and charger?

A:Yes

Anonymous

Certified Buyer

Report Abuse

Q:Can this board be used for any racket?

A:Yes, it is good for mosquito racket.I'm use this and working ok.

Anonymous

Certified Buyer

Report Abuse

Q:What input Voltage it's required?

A:3.5 To 5.0 volt

Anonymous

Certified Buyer

Report Abuse
