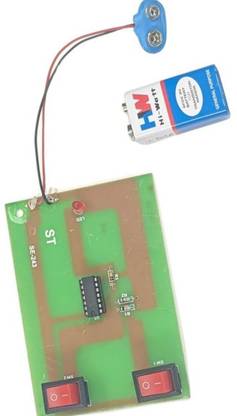

    DIYtronics Logic OR Gate Circuit IC 7432 Based Science Project Working Educational Electronic Hobby Kit

    DIYtronics Logic OR Gate Circuit IC 7432 Based Science Project Working Educational Electronic Hobby Kit

    Price: Not Available
    Currently Unavailable
    Highlights
    • Power Source: Battery
    • Material: Plastic
    • Weight: 67
    Specifications
    In The Box
    • Logic OR Gate Circuit IC 7432 Based Science Project
    General
    Brand
    • DIYtronics
    Model Number
    • Logic OR Gate Circuit IC 7432 Based Science Project Working
    Skillset
    • Creativity & Imagination
    Type
    • Educational
    ROHS Complaint
    • No
    Material
    • Plastic
    Age Group
    • 16+ Years
    Dimensions
    Width
    • 10 cm
    Height
    • 1.5 cm
    Weight
    • 67
    Power Features
    Battery Type
    • 9v Battery
    No Of Batteries
    • 1
    Battery Size
    • NA
    Power Source
    • Battery
    Other Power Features
    • It can have two or more input lines at a time. When all of the inputs to the OR gate are low or logic 0, the output of it is low or logic 0., The Boolean expression for a two input OR gate is given by, Z = A + B. The Boolean expression for a three-input OR gate is, Z = A + B + C. Here, A, B, and C are inputs and Z is the output variables. We can extend this Boolean expression to any number of input variables., Explore the fascinating world of digital circuits with hands-on experiments using real logic gates! (e.g., AND, OR, NOT), Learn by Doing: Build working circuits and discover how logic gates process information, the foundation of all modern computers., STEM Focused: Develop critical thinking, problem-solving, and engineering skills through engaging science, technology, engineering, and math (STEM) activities.
