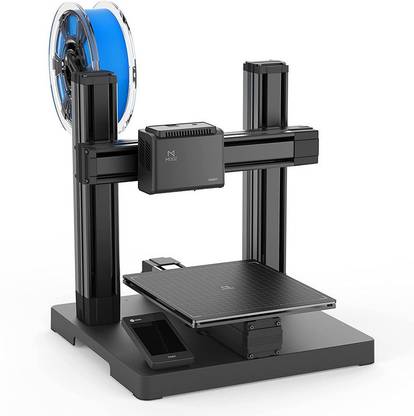

Dobot DB-MZ001 Mooz 3D PRINTER 3 In 1 Industrial Grade Transformable Metallic, Support CNC and Laser Engraving, Free PLA Filament, PROTECTIVE Case and Goggle 3D Printer

Price: Not Available

Currently Unavailable

Warranty

12 Months Warranty of the product is limited to manufacturing defects only.

Specifications

In The Box

Shipping List:1. Mooz Double Z-axis 3D Printer 1 2. 8-core Cable 2 3. 6-core Cable x1 1-to-2 Adapter 1 4. USB 2.0 Cable(A-male to B-male) 1 5. 12V Power Adapter 1 6. CNC Platform & Fixture 1 7. CNC Chuck Wrench & Bits 1 9. Hex Screwdrivers & Serveral M3x8 M3x6 Hex Screws 10. 250g PLA Filament 1 11. Filament Support 1 12. 3D Printing Module 1 13. CNC Carving Module 1 14. Laser Engraving Module 1 15. Goggles 1 16. Protective Shield 1

General

Brand	Dobot
Model Name	DB-MZ001 Mooz 3D PRINTER 3 In 1 Industrial Grade Transformable Metallic, Support CNC and Laser Engraving, Free PLA Filament, PROTECTIVE Case and Goggle
Color	Black
Print Speed	110 mm/sec
Auto Calibration Present	Yes
Printing Technology	Fused Deposition Modeling
Print Bed Type	Heated
SD Card Support	Yes
Build Volume	200mm (L) x 200mm (W) x 190mm (H)
Power Consumption	24 V
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Controls	It also supports cnc carving on wood, leather, plastic, except for metal and laser engraving on wood, leather, paper with 500Mw laser power.
Minimum Layer Resolution	0.1 microns
Maximum Layer Resolution	0.3
Connectivity	Ethernet, USB
Print Bed Material	Metal
Filament Material	ABS, PLA
Supported Files	STL
Print Accuracy	Nozzle Diameter 0.4 mm Layer Resolution 0.05~0.3 mm Supported Materials 1.75mm PLA, TPU, PETG, & Flexible Materials Effective Printing Speed 0 ~ 80mm/s Nozzle Temp 250℃ Max. Heat Bed Temp 80℃ Max. (25℃ambient temp.) Heat Bed Material Glass platform + Flexible steel print sheet Printing Size X200 * Y200 * Z190mm Supported Files Types STL, OBJ, JPEG, JPG, PNG, etc Ambient Operating 10~40° C, 10~90% RH non condensing Filament Runout Sensor Mechanical switch, build inside 3D printing module Leveling Automatic Z-axis compensation, with magnetic independent auto leveling module Power Loss Resume Supported
Print Temperature	Layer Resolution: 0.01-0.3mm --Extruder Quantity: Single Nozzle Diameter: 0.4mm --Slicer Software: Cura Travel Speed: 100mm/s --Software Output Formats: GCode Positioning Accuracy: X/Y- 0.0125mm；Z- 0.002mm Software Input Formats: .STL, .OBJ,.DAE, .AMF
Supported OS	Windows, MAC
Extruder Head	1
Monitoring Camera	No
Other Features	Full Aluminum 3D Printer with Industrial-grade CNC-machined Body, Linear Guideway and Stepper Motor Keeps MOOZ Stable and High Precision - 0.02mm. Assistant Calibration, Easy to Assemble within 10 Minutes, Protective Case with Goggle, Intuitive Guide and Tutorial Make MOOZ Suitable for Beginners, Makers, Educators and More.
Bed Temperature	110°C

Dimensions

Height	43.18 cm
Width	34.29 cm
Weight	13 kg

Warranty

Warranty Summary	12 Months Warranty of the product is limited to manufacturing defects only.
Service Type	Replacement Warranty
Covered in Warranty	Manufacturing defects only
Not Covered in Warranty	Customer damage, Physical Damage, Liquid damage or Burnt damage
Domestic Warranty	12
International Warranty	12
