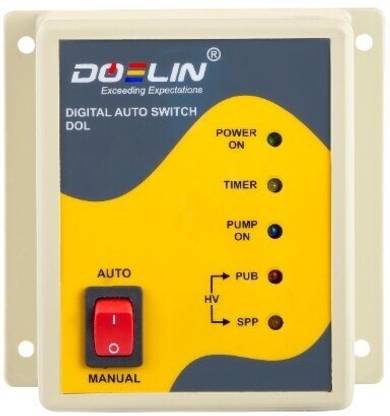

    DOELIN AUTO SWITCH DOL Water Pump Starter

    DOELIN AUTO SWITCH DOL Water Pump Starter

    Price: Not Available
    Currently Unavailable
    Warranty
    0
    Description
    • 16-Bit Microcontroller based Design for Accurate control • Operating voltage range 200Vac-470Vac at 50Hz • Trip Time Delay- 5 sec to 10 sec • Prevention Against • Phase Failure from input side (input SPP) • Phase Failure from output side (output SPP) • Phase Reversal • Phase unbalance (Normally 80V) • Overload Protection • Dry Run Protection • Current Unbalance
    Read More
    Specifications
    In The Box
    Sales Package
    • AUTO SWITCH DOL
    General
    Brand
    • DOELIN
    Model Number
    • AUTO SWITCH DOL
    Type
    • Water Pump Starter
    Frequency
    • 50
    Phase
    • Three Phase
    Power Requirement
    • 250 TO 470VV
    Rated Current
    • 21 A
    Motor Power
    • 7.5 hp
    Power Consumption
    • 1 W
    Material
    • PLASTIC
    Other Features
    • Features - • rue RMS voltage and current measurement • Unique Emergency Overload Protection Facility • Built-in ON delay & star delta timer • Selectable Auto and Manual Mode • Adjustable Dry Run Auto start Timer • Adjustable Dry Run Percentage • Fault Auto Reset Switch • Auto Reset Facility for I/P SPP & HV Fault • Two Relay Output for Fully automatic starter • Output contact suitable for any HP/KW rating pumps
    Dimensions
    Height
    • 10.4 cm
    Length
    • 10.4 cm
    Width
    • 10.4 cm
    Weight
    • 0.5 kg
    Warranty
    Service Type
    • NO WARRENTY REPAIRING CHARGES WILL BE AT ACTUAL
    Covered in Warranty
    • NO WARRENTY - REPAIRING CHARGES WILL BE AT ACTUAL
    Not Covered in Warranty
    • NO WARRENTY
    Warranty Summary
    • 0
