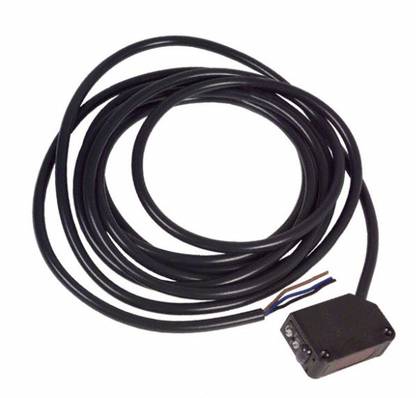

Dolphin Device Photoelectric Switch Diffuse Sensor NPN NO Electronic Components Electronic Hobby Kit

"Product Description Diffuse scan photo Electric Sensor ( Sense all reflecting target property like paper ,wood , Metal etc. ) Photo Electric sensor called as diffuse scan because transmitter and reciever in same housing. Description: Diffuse-reflective, Sensing distance: 5 to 100 mm, Light-ON/Dark-ON selectable, NPN output, Pre-wired models (2 m) Sensing method Diffuse-reflective Sensing distance White paper 100 x 100 mm: 100 mm max. Connection method Pre-wired models Make - OMRON Specifications: Shape Square type Sensing method Diffuse-reflective Sensing distance White paper 100 x 100 mm: 100 mm max. Differential distance 20% max. of sensing distance Light source Infrared LED (860 nm) Power supply voltage 12 to 24 VDC ±10% ripple (p-p) 10% max. Current consumption 30 mA max. Control output NPN NO open collector 26.4 VDC max. 100 mA max. Residual voltage: 1 V max. Operation mode Light-ON/Dark-ON selectable Protective circuit Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection, Mutual interference prevention Response time Operate or reset: 1 ms max. Sensitivity setting Single-turn adjustment Ambient illuminance Incandescent lamp: 3000 lux max., Sunlight: 10000 lux max. Ambient temperature (Operating) -25 to 55? Ambient temperature (Storage) -40 to 70? Ambient humidity Operating: 35 to 85% Storage: 35 to 95% Insulation resistance 20 M? min. (at 500 VDC) Dielectric strength 1000 VAC 50/60 Hz 1 min Vibration resistance Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h Shock resistance Destruction: 500 m/s**2 3 times each in X, Y and Z directions Degree of protection IEC: IP67 Connection method Pre-wired models (Cable length 2 m) Indicator Operation indicator (orange), Stability indicator (green) Weight Package: Approx. 65 g Accessories Instruction manual Material Case: Polybutylene terephthalate (PBT) Lens: Denatured Polyarylate"
