DS Robotics LCD 16x2 Alphanumeric Display + IIC/I2C Serial Interface Adapter Module For Arduino Electronic Components Electronic Hobby Kit

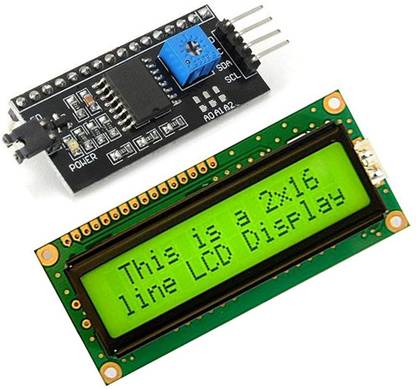

This is LCD1602 Parallel LCD Display that provides a simple and cost-effective solution for adding a 16×2 Black on RGB Liquid Crystal Display into your project. The display is 16 character by 2 line display has a very clear and high contrast black text upon a yellow background/backlight. IIC/I2C Serial Interface Adapter Module – This is a RoHS compliant I2C Serial LCD Daughter board that can be connected to a standard 16×2 or 20×4 Character Display Module that supports 4-bit mode. All Character Modules sold on our site support 4-bit mode, and nearly all commercially available 16×2 and 20×4 line character modules support it too. This board has a PCF8574 I2C chip that converts I2C serial data to parallel data for the LCD display. There are many examples on the internet for using this board with Arduino. Do a search for “Arduino LCD PCF8574“. The I2C address is 0x3F by default, but this can be changed via 3 solder jumpers provided on the board. This allows up to 3 LCD displays to be controlled via a single I2C bus (giving each one its own address)
