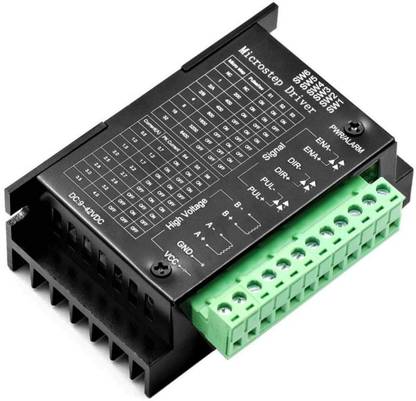

DS Robotics Stepper Motor Driver, TB6600 4A 9-42V Nema 17/23 CNC Controller Single Axes Hybrid - Upgraded Version Motor Control Electronic Hobby Kit
Price: Not Available
Currently Unavailable
Highlights
Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 80
Description
TB6600 4A 9-42V Stepper Motor Driver CNC: Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode. Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work. Description: 9V-42V DC power supply H bridge bipolar constant phase flow drive the maximum 4.0A of the eight kinds of output current the largest 32 subdivision of the 6 models are optional input signal high speed photoelectric isolation common-anodestandard single pulse interface offline to maintain the function 8. semi closed enclosure can be adapted to a more stringent environment 9. to provide energy-saving semi-automatic current lock function 10. built-in temperature protection and over current protection. IC parameter: single chip bipolar sine microstep stepper motor driver the new BiCD 0.13 nm process up to 42V resistance (a +) = 0.4 the forward and reverse rotation control
Read More
Specifications
In The Box
1 Piece TB6600 Controller
General
brand
DS Robotics
Model Number
Stepper Motor Driver, TB6600 4A 9-42V Nema 17/23 CNC Controller Single Axes Hybrid - Upgraded Version
Type
Motor Control
Minimum Age
12
ROHS Complaint
Yes
Material
Plastic
Dimensions
Width
4 cm
Height
1.5 cm
Weight
80
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
DC
Other Power Features
NA
