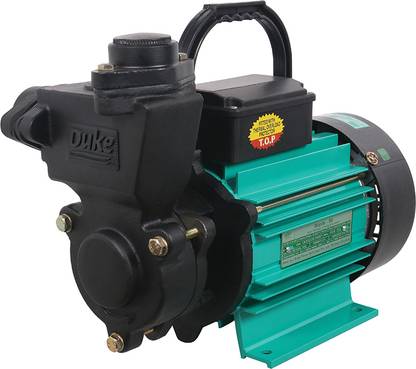

Duke Save Energy Pumps & Pipes Domestic Series Self Primimg pump Mizzle -90 Centrifugal Water Pump

Duke Save Energy Pumps & Pipes Domestic Series Self Primimg pump Mizzle -90 Centrifugal Water Pump  (1 hp)

Price: Not Available
Currently Unavailable
Warranty
1 Year Warranty.
Highlights
  • Single-phase Water Pump
  • Power Rating: 0.75 kW
  • Power Supply: 230voltage
  • Motor Power: 1 hp
Description
Premium Quality Duke Domestic Series Self Primimg Pump Batter Performance in Low Voltage. Range : 3 m to 40 m Package Content : "1 PUMP, 1 STARINER, 1 MANUAL " provides you highly efficient pump which is lightweight, easy to handle and also ups compatible. Our powerful high flow rate pumps are designed to deal with large volumes. It can be used for domestic purpose in bungalows, hotels, farmhouses etc. Specifications - head - 3 to 40 meters capacity - 3100 to 500 LPH power rating - 1 HP. Special motor design can work on ups it is capable of priming up to 3 meters static suction lift without a foot valve, at rated head and discharge b class of insulation. Motor can withstand with wide voltage fluctuation from 180-240 volts. Light weight pump for easy handling includes capacitor inside terminal box. Tefc capacitor starts and run motor. Applications - water supply for domestic use in bungalows, apartments, hotels, farmhouses etc. Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens.
Read More
Specifications
Warranty
Warranty Summary
  • 1 Year Warranty.
Service Type
  • NA
Covered in Warranty
  • as per warranty card
Not Covered in Warranty
  • as per warranty card
In The Box
  • 1 PUMP, 1 STARINER, 1 MANUAL
General
Brand
  • Duke Save Energy Pumps & Pipes
Model Name
  • Domestic Series Self Primimg pump Mizzle -90
Type
  • Centrifugal
Usage Type
  • Domestic
Flow Rate
  • 53 Lpm
Total Head
  • 40 m
Additional Features
Key Features
  • Premium Quality Duke Domestic Series Self Primimg Pump Batter Performance in Low Voltage.., This 0.5 hp water pump can be used for Residential Purposes, Water Curing, Small Farms, Lawn and Gardens, Industrial purposes., For lifting water to over head storage tanks., Total Head 22 Mtr. Can Pull upto 15 Feet with Delivery upto 40 Feet.Fitted with Thermal Overload Protector.Single Phase. AC180 - 240V. 2880 RPM. Low Power Consumption., Works UPTO 70 Feet. Suction UPTO 15 Feet. Total Head 22M. Inlet & Outlet Size 25 x 25 mm., Package Content : "1 PUMP, 1 STARINER, 1 MANUAL ", Range : 3 m to 40 m
Dimensions
Weight
  • 9.79 kg
Power Features
Phase
  • Single-phase
Thermal Over Load Protector
  • No
Power Supply
  • 230voltage
Power Rating
  • 0.75 kW
Motor Power
  • 1 hp
