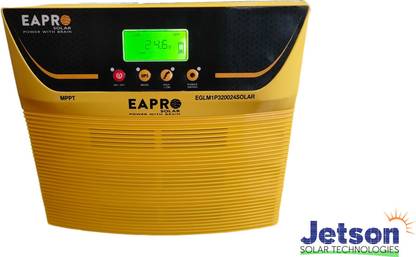

EAPRO GLOBAL LTD. 2600 VA 3000VA/24V MPPT SOLAR PCU with 24 Months Warranty Solar Compatible Pure Sine Wave Inverter (EGLM1P320042SOLAR)

Price: Not Available

Currently Unavailable

Warranty

30* MONTHS (24M standard+6 month extension on registration)

Highlights

Battery Capacity: 100-200AH

Description

EAPRO is a global leader in manufacturing solar inverters and inventor of sine wave inverter technology is Mr. JAGDEEP CHAUHAN ji (founder of EAPRO GLOBAL). This powerful yet compact MPPT solar PCU comes with 0.8 power factor which means you can lift a load of 9.5 AMP load (such as 1HP submersible, 1.5 ton 5star inverter AC etc.) its having a elegant and stylish look with large LCD display & multifunction buttons. This inverter comes with standard 24 months + 6 months free extendable via registration warranty total of 30* months warranty.

Specifications

Output Features

Efficiency	98 %
Output Voltage	230
Output Frequency	50Hz
Overload	10 AMP
Output Power	2400 W
VA Rating	2600 VA

Environmental Features

Operating Temperature

BELOW 90 DEGREE CELCIUS

Warranty

Warranty Summary	30* MONTHS (24M standard+6 month extension on registration)
Service Type	ON SITE
Covered in Warranty	Acc to the EAPRO clause
Not Covered in Warranty	Acc to the EAPRO clause
Domestic Warranty	24 Months

Input Features

Input Voltage	180-270V
Input Frequency	50Hz
Low Cut Input Voltage	180V
Low Cut Recovery Input Voltage	9-12V HYSTERISIS> LOW CUT
High Cut Input Voltage	270V
High Cut Recovery Input Voltage	9-12V HYSTERISIS< HIGH CUT

Battery Features

Battery Type	LEAD ACID
Number of Batteries	2
Battery Boost Voltage	28.8V
Battery Voltage	24V
Battery Capacity	100-200AH
Compatible Battery Types	LEAD ACID
Compatible Battery Make	EAPRO, AMARON, EXIDE, SF SONIC, UTL

In The Box

Sales Package

battery wires, user manual, dc fuse, inverter

General

Brand	EAPRO GLOBAL LTD.
Model Number	EGLM1P320042SOLAR
Battery Included	No
Load Options	9.5AMP +-0 .5A
Type	Pure Sine Wave Inverter
Model Name	3000VA/24V MPPT SOLAR PCU
Mode Type	AUTOMATIC HYBRID OFF GRID
Material	Metal, Plastic
Fixture Type	table top
Technology Used	Transformer based
Solar Power Compatible	Yes
Switch Type	Advance power saving switch

Dimensions

Width	28 cm
Height	28 cm
Depth	34 cm
Weight	24.3 kg

Additional Features

Key Features

Panel support:-2500watt, Load current :- 9.5 AMP, Settable configuration large display, High VOC range upto 110V, Interleaved MPPT with 2 input channels

Convenience Features

Display Type	LCD
USB Charging Port	No
Protection Against	P V REVERSE, SHORT CIRCUIT, OVER TEMPERATURE
Cooling System	DUAL FAN

Ratings & Reviews

4.3

★

3 Ratings &

0 Reviews

5★
4★
3★
2★
1★

Have you used this product? Be the first to review!

Questions and Answers

Q:Can this inverter run 1.5 hp submersible pump

A:SIR DEPANDS ON TYPE OF MOTOR AS MANY CLIENT RUNS 1.5 HP MOTOR SMOOTHLY.
