Easy Electronics ESP32 Based 8-Channel Relay Board Micro Controller Board Electronic Automotive Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Fiber Glass
Weight: 15

Description

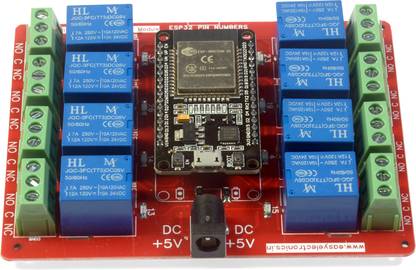

This is an ESP32 Wi-Fi and bluetooth Based 8-Channel Relay Module for Home Automation Project. This Board Included the Esp32 module, 4-Channel 5V Relays, 817 Opto-couplers and through-hole LED for indication purposes. This ESP32 -based Relay Module is suitable for wirelessly controlling appliances via WiFi and bluetooth. It is a four-channel relay module that can control up to 250V AC and 30V DC with a load capacity of 7A. The module has an LED that lights up depending on the module's condition. When a signal is received on the IN pin, a red power activation LED illuminates. When a signal is received, the relay triggers, connecting the output pins with an audible click. The integrated ESP32 is used to control the relay. ESP will manage everything once programmed and powered, making it suitable for internet of things (IoT) projects.

Product Description

Comprehensive Kit for Wireless Control

This electronic hobby kit provides a comprehensive solution for wireless control of various appliances and devices. It includes an ESP32 module, 4-channel 5V relays, 817 opto-couplers, and through-hole LEDs for indication purposes. The heart of this kit, the ESP32 module, is a versatile microcontroller known for its dual-core processing and built-in Wi-Fi and Bluetooth capabilities. The 4-channel 5V relays allow you to control multiple devices simultaneously, while the opto-couplers and LEDs provide visual feedback about the status of the relay board.

Made from Fibreglass

The construction material of this board is fibreglass, a lightweight and durable material known for its excellent electrical insulation properties. Fibreglass is commonly used in electronics due to its resistance to corrosion, heat, and moisture. It provides a robust platform for the components on the board, ensuring the safety and longevity of the electronic circuits.

DC Power Source

This electronic relay board is powered by a DC power source. Direct current (DC) power is widely used in electronics because it offers stable and continuous voltage, essential for the proper functioning of electronic components. DC power is convenient for low-voltage applications like this relay board and can be easily supplied by batteries or external power adapters.

8-Channel Relay Module

The board features an 8-channel relay module, making it suitable for home automation projects and other applications that require the control of multiple devices. Each relay can handle up to 250V AC and 30V DC, with a load capacity of 7A, providing the flexibility to manage a range of electrical loads. These relays are essential for switching appliances on and off remotely, and the board is equipped with LEDs that indicate the status of each channel. The LEDs provide a visual cue regarding which channels are currently active, adding convenience and usability to your projects.

Specifications

In The Box

General

Brand	Easy Electronics
Model Number	ESP32 Based 8-Channel Relay Board Micro Controller Board Electronic
Skillset	Spatial Skills
Type	Automotive
ROHS Complaint	No
Material	Fiber Glass
Age Group	16+ Years
Suitable For Gifting	NA
Gift Pack	No
Net Quantity	1

Dimensions

Width	10 cm
Height	5 cm
Weight	15

Power Features

Battery Type	0
No Of Batteries	0
Battery Size	0
Power Source	DC
Other Power Features	0

Ratings & Reviews

2.7

★

6 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Terrible product

all relays are not working and some relays continuously getting on and off

avinash shirale

Certified Buyer, Palam

Oct, 2023
