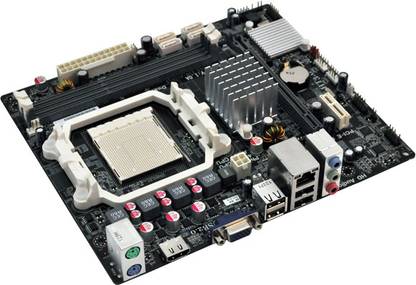

ECS A960M-MV (V1.0A) with HDMI Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Carry In Warranty

Highlights

AMD 760G
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

Back Panel Ports

HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

Motherboard, 2 Sata Cable, Manual

General Features

Overclocking	Easy Over Clock Utility (eOC)
Bundled Software	ECS Intelligent EZ Utility: eBLU, eDLU, eOC, eSF
OS Support	Windows: XP, 7, Vista, 8
BIOS	AMI BIOS with 16 MB SPI Flash ROM, ACPI and DMI, F7 Hot Key for Boot-up Devices Option, Plug and Play, STR (S3)/STD (S4), Hardware Monitor, Multi Boot, Multi-language BIOS, Audio and LAN can be Disabled in BIOS
Features	Applied Solid Capacitor for CPU VRM, ErP/EuP Certification, ROHS, ESD Protection Prevent Computers from Electrostatic Discharge Damage, AMD Radeon HD3000 Graphics, WHQL Certification, ECS GUI UEFI BIOS, AHCI and Hot Plug Functions, Certifications: CE/FCC Certification, Supports DirectX 10, Upto 95 W Thermal Design Power Support, Supports NCQ
Advanced Technologies	ECS Durathon Technology, D-Sub Connection Technology, ECS MIB Technology
Advanced Features	AMD HyperTransport 3.0 CPU Interface, Supports AMD Cool n Quiet, Anti- Static Design (ESD Protection), eSF(ECS Smart Fan Utility), eBLU (ECS BIOS Live Update Utility)

Warranty

Domestic Term	3 Years ECS India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Carry In Warranty
Covered in Warranty	Burnt (Only IC), Rust, Manufacturing Defects
Not Covered in Warranty	Track, Sockets, Burnt, Forceful Tampering, Mishandling and Physical Damage
Warranty Service Type	Carry In

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Limitations

Due to Windows 32-bit Operating System Limitation, When More than 4 GB of Physical Memory is Installed, The Actual Memory Size Displayed will be Less than 4 GB, Due to the Operation System Limitation the Actual Memory Size May be Less than 4 GB for the Reservation for System Usage Under Windows 32-bit OS, For Windows 64-bit OS with 64-bit CPU there is no such Limitation, Due to AMD CPU Spec Limitation Please Refer to Memory QVL for more Information

Dimensions

180 x 210 mm

Essentials

Form Factor	Micro-ATX
Socket Type	AM3+
Compatible Processors	AMD Athlon II X4 Processor (Socket AM3), AMD Phenom II X4 Processor (Socket AM3), AMD Phenom II X2 Processor (Socket AM3), AMD Athlon II X2 Processor (Socket AM3), AMD Phenom II X6 Processor (Socket AM3), AMD Sempron X2 Processor (Socket AM3), AMD Athlon II X3 Processor (Socket AM3), AMD Athlon II Processor (Socket AM3), AMD Sempron Processor (Socket AM3), AMD Phenom II X3 Processor (Socket AM3), AMD FX Series Processor (Socket AM3+)
Chipset	AMD 760G, AMD SB710
Chipset Manufacturer	AMD

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes

Storage

SATA 3 Gb/s	AMD SB710
RAID Controller	AMD SB710
RAID Configurations	0, 1, 10

Expansion Slots

PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	2, 1

General

Brand	ECS
Series	Essentials
Model ID	A960M-MV (V1.0A) with HDMI
Key Features	Maximum 16 GB DDR3, AMD SB710 Chipset, AMD 760G Chipset, AM3+ Socket Type, 2 Memory Slots, Dual Channel DIMM Memory, Micro-ATX Form Factor, 1 HDMI Port

Connectivity

Ethernet Controller	Realtek 8105E
Ethernet Features	10/100 Mbps, Wake-On-LAN
Number of Com Ports	1

Audio

Audio Codec	Realtek ALC662
Audio Channels	6
Audio Features	HD Audio, Compatible with Direct Sound 3D, A3D, I3DL2, Voice Cancellation, Key Shifting in Karaoke Mode, Emulation of 26 Sound Environments, 6 Channel DAC Supports 16/20/24-bit PCM Format for 5.1 Channel Audio Solution, Meets Performance Requirements for Microsoft WLP 3.08 Vista Premium and Mobile PCs

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	2
Other Connectors	1 x CLR_CMOS Header, 1 x 4-pin 12 V Power Connector, 1 x Speaker Header, 1 x Chassis Intrusion Header

Ratings & Reviews

1.5

★

2 Ratings &

1 Reviews

5★
4★
3★
2★
1★

cheap but not worthy

I buy this product from local market and its the cheapest motherboard available in the market.Forget about performance it sometimes even bother to play simple video file,although i do not have any major issues with its operation but it sometimes just got hang with no load at all and came back after couple of seconds with displaying message "The display driver stopped and recover successfully" .The motherboard also don't support 2008- 2010 games which i expected with AMD Athlon X-2 3.4 Ghz 2nd...
