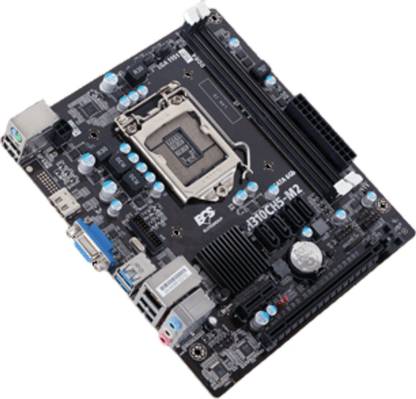

ECS H310CH5-M2 LGA1151Socket Micro-ATX Intel H310 Chipset DDR4 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Warranty

1 Year Manufacturing warranty from the date of purchase

Highlights

Description

Supports DirectX® 12

Specifications

In The Box

Sales Package

General

Brand	ECS
Model ID	H310CH5-M2

Essentials

Form Factor	Micro-ATX
Socket Type	LGA1151
Chipset	Intel H310
Chipset Manufacturer	Elitegroup Computer Systems

Memory

Number of Memory Slots	2 Slots
Memory Configuration	32 GB DDR4 Dual-channel DDR4 Memory architecture DIMM
Memory Frequency	2666 MHz
ECC Support	Non ECC
Buffered Memory	Yes

Graphics

Integrated Graphics card	DirectX® 12
External Graphics Card Support	Yes

Audio

Audio Codec	High Definition Audio
Audio Channels	6
Audio Features	Realtek ALC662 6-channel High Definition audio CODEC, Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs, Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution, Emulation of 26 sound environments to enhance gaming experience, Voice Cancellation and Key Shifting in Karaoke mode, Compatible with Direct Sound 3D™, A3D™, I3DL2

Connectivity

Ethernet Controller	Ethernet 8111H
Ethernet Card	Gigabit 10/100/100
Ethernet Features	Realtek 8111H Gigabit Fast Ethernet Controller, Wake-On-LAN

Expansion Slots

Internal I/o Headers

USB 2.0 Headers	1
USB 3.0 Headers	1
ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	12
Other Connectors	1 X HDMI port(s) (DVI port(s), optional), 2 X USB 3.2 Gen 1x1 port(s), 4 X USB2.0 port(s)
VGA/Dsub Connectors	1

Back Panel Ports

General Features

Hardware Monitoring	System Voltage Detection, System Temperature Detection
Bundled Software	ECS Intelligent EZ Utility : eBLU, eDLU, eSF, Free Bundle: CyberLink Media Suite
OS Support	Windows 10
BIOS	AMI BIOS with 64 MB SPI Flash ROM, ACPI & DMI, F7 hot key for boot up devices option, Support GUI UEFI BIOS, Plug and Play, STR (S3) / STD (S4) , Hardware monitor, Multi Boot, Multi-Language BIOS, Audio, LAN, can be disabled in BIOS, Supports PgUp clear CMOS Hotkey
Advanced Technologies	Dual Display
Advanced Features	Intel® 14nm 8th generation Multi-Core CPU support, Supports DirectX® 12 to enhance graphical performance, Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function, Windows 10 Workable support, 3+1 Phase Power Design, Applied 100% Solid capacitor design to maximize component reliability (Optional), ECS Durathon Technology ensure the stability, reliability and performance of system., ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan, Supports GUI UEFI for tweaking BIOS in Graphical interface within a multi language environment

Warranty

Warranty Summary	1 Year Manufacturing warranty from the date of purchase
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Damages
Warranty Service Type	In case of any repair / damage to the product, Who / Where the customer has to contact SAPPHIRE DIGITECH
