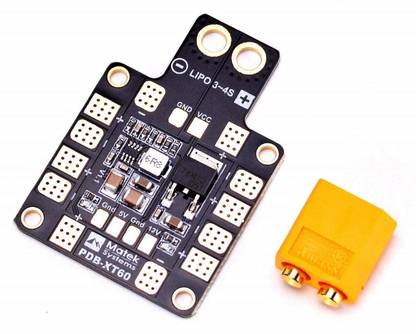

ELBOTICS (1 Pcs) PDB XT60 Power Distribution Board PDB-XT60 Module with BEC 5V 12V for FPV Drone Quadcopter QAV210 , 250 Micro Controller Board Electronic Hobby Kit

Input voltage range (3s-4s lipo operation): 9-18v dc; regulated outputs: 5v and 12v outputs; esc outputs: continuous current: 25a*4 or 15a*6;bec 5v output: designed for: rc receivers, flight controllers, osd, and servos; bec mode: linear voltage: 5.0 +/- 0.1vdc; continuous current: 2 amps (max.2.5a 10s/minute); output ripple: 40mv (vin=16v, vout=5v@2a load);short-circuit tolerant: 5 seconds/minute; bec 12v output designed for video tx or fpv camera with linear regulator;bec mode: linear suggested battery: 4s lipo (13~18v dc); voltage: 12.0 +/- 0.3vdc; continuous current: 500ma (max.0.8a 5s/minute);package contents: 1x pdb board, 1x xt60 connector.
