    ELECSYNERGY ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP Electronic Components Electronic Hobby Kit

    ELECSYNERGY ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP Electronic Components Electronic Hobby Kit

    Price: Not Available
    Currently Unavailable
    Warranty
    NA
    Highlights
    • Power Source: DC, Battery
    • Material: Carbon Fiber
    • Weight: 100
    Description

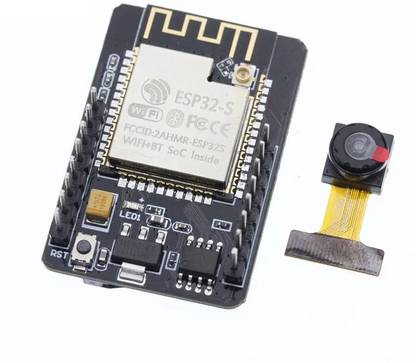

    The ESP32-CAM is an Ai-Thinkers Original ESP32 CAM WiFi+Bluetooth with OV2640 Camera Module based on the ESP32 chip with the additional facility of using a camera. It is ideal for various IoT applications. The ESP32-CAM has a very competitive small-sized camera module that can operate independently as a minimum system. Ai-Thinker ESP32 CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications. Pin Configuration: ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.
    Read More
    Specifications
    In The Box
    • 1 x ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP
    General
    brand
    • ELECSYNERGY
    Model Number
    • ESP32 CAM WiFi Module Bluetooth with OV2640 Camera Module 2MP
    Type
    • Electronic Components
    Minimum Age
    • 3
    ROHS Complaint
    • No
    Material
    • Carbon Fiber
    Net Quantity
    • 1
    Additional Features
    Other Features
    • Low-power dual-core 32-bit CPU for application processors, Up to 240MHz, up to 600 DMIPS, Built-in 520 KB SRAM, external 4M PSRAM, Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC, Support OV2640 and OV7670 cameras with built-in flash, Support for images WiFI upload, Support TF card, Support multiple sleep modes, Embedded Lwip and FreeRTOS, Support STA/AP/STA+AP working mode, Support Smart Config/AirKiss One-click distribution network, Custom IO Port: 9
    Dimensions
    Width
    • 6 cm
    Height
    • 8 cm
    Other Dimensions
    • Dimensions: 41x27x5mm
    Weight
    • 100
    Power Features
    Battery Type
    • NA
    No Of Batteries
    • NA
    Battery Size
    • NA
    Power Source
    • DC, Battery
    Power Consumption
    • NA
    Other Power Features
    • Input Supply Range (VDC): 3.6 ~ 5, can operate at 3.7v battery
    Warranty
    Warranty Summary
    • NA
    Service Type
    • NA
    Covered in Warranty
    • NA
    Not Covered in Warranty
    • NA
