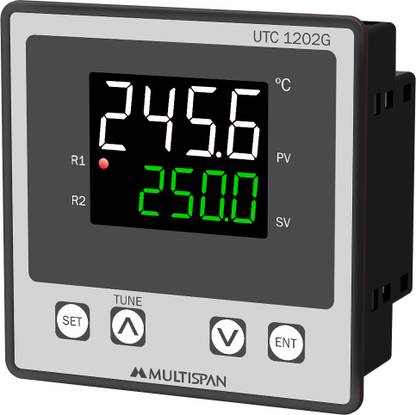

ELECTRIXZONE Multispan UTC-1202G Double Display Universal input PID Controller Multipurpose Controller

Price: Not Available

Currently Unavailable

Description

Brand: Multispan Model: UTC-1202G Dimension (HxWxD) mm: 96 x 96 x 54 Panel Cutout (mm): 92 x 92 Input: J / K /PT-100 2Wire or 3Wire (Configurable) Range: J (0°C to 600°C, 0.0 to 400.0), K (0°C to 1200°C, 0.0 to 500.0°C), PT-100 2Wire or 3Wire (-50°C to 400°C, -50.0°C to 400.0°C) Output: 2 Output : ( SSR parallel to 1 Relay ) + 1Relay or 1SSR Drive O/P ( 2 Relay 1C/O 5A,230V AC (resistive load) & SSR Drive O/P 12V DC, 20mA ) Operating Mode: Heat / Cool / Alarm Alarm: High / Inband / Absolute Low / Absolute Outband / Outband / End Alarm/ Low Alarm Outband + Soak Timer Control Action: PID / TP / ON-OFF (Configurable) Accuracy: ±0.5% of FSD Supply: 100-270V AC (SMPS), 50/60 Hz

Specifications

In The Box

Sales Package

UTC-1202G

General

Brand	ELECTRIXZONE
Model Number	Multispan UTC-1202G Double Display Universal input PID Controller
Type	Wired
Power Source	100-270V AC (SMPS), 50/60 Hz
Material	FIBRE
Color	Black
Bluetooth Enabled	No
Wifi Enabled	No
Compatible Devices	1
Range	5

Additional Features

Other Features

96 X 96 X 54, Input: J / K /PT-100 2Wire or 3Wire (Configurable), Range: J (0°C to 600°C, 0.0 to 400.0), K (0°C to 1200°C, 0.0 to 500.0°C), PT-100 2Wire or 3Wire (-50°C to 400°C, -50.0°C to 400.0°C), Output: 2 Output : ( SSR parallel to 1 Relay ) + 1Relay or 1SSR Drive O/P ( 2 Relay 1C/O 5A,230V AC (resistive load) & SSR Drive O/P 12V DC, 20mA ), Operating Mode: Heat / Cool / Alarm, Control Action: PID / TP / ON-OFF (Configurable), Accuracy: ±0.5% of FSD, Supply: 100-270V AC (SMPS), 50/60 Hz, Alarm: High / Inband / Absolute Low / Absolute Outband / Outband / End Alarm/ Low Alarm Outband + Soak Timer

Dimensions

Width	9.6 cm
Height	9.6 cm
Depth	5.4 cm
Other Dimensions	92 x 92
