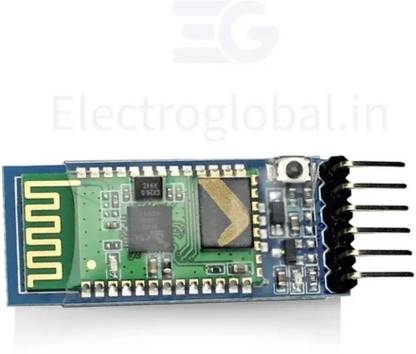

ELECTRO GLOBAL HC-05 6 Pin Wireless Serial Bluetooth Module for Arduino/RPi Electronic Components Electronic Hobby Kit
- Power Source: DC
- RoHS Compliant
- Material: Epoxy
- Weight: 11
Boasting the HC-05 Bluetooth 2.0 version, this wireless serial Bluetooth module is designed to work seamlessly with Arduino boards, including UNO R3, Nano, Pro Mini, and MEGA. This module includes an AT mode button for configuration and can operate through VCC (3.6V-6V), GND, TXD, RXD, and STATE pins. Moreover, the integrated LED connection status indicator can ensure you are always aware of this module’s current state, making it easy to monitor and troubleshoot.
Equipped with ROHS compliance and a reliable GPS receiver, this Bluetooth module can operate efficiently on an ISM band of up to 2.4 GHz. It can also support a power input range between 3.6V and 6V while including EN, STATE, RXD (level up to 3.3 V), TXD, and GND pins for versatile applications. Moreover, engineered to perform reliably in varied environmental conditions, it can function smoothly within a temperature range between -20°C and +75°C, making it suitable for diverse projects.
Constructed with high-grade epoxy material, this module is designed for durability and longevity. The epoxy coating can protect its internal components from dust, moisture, and other environmental factors, ensuring stable and consistent performance over time. This robustness makes it a reliable choice for both indoor and outdoor projects.
Thanks to its flexibility, this module is ideal for multiple uses. It can support Arduino and Raspberry Pi applications, enabling efficient data logging, wireless robot control, and seamless communication between sensors and microcontrollers. This module is also well-suited for home automation projects, facilitating data acquisition while promoting wireless communication between up to two microcontrollers for enhanced project capabilities.
|
