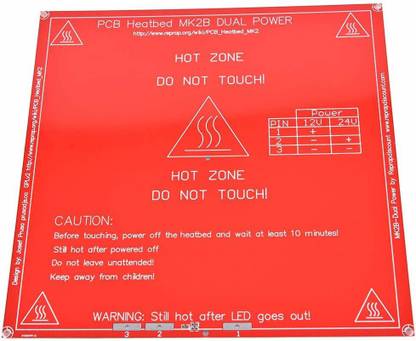

Electrobot 3D Printer PCB Heatbed MK2B Dual Power 12V 24V Red for MakerBot RepRap UP Mendel I3 Printer Educational Electronic Hobby Kit

This heatbed is designed to be compatible with any 3D printer that can accept the RAMPS MK2B version of heatbed. This heatbed has a dual power capability allowing it to be used with 12V or 24V power supply sources. It features a central mounting hole on the front side to allow for three point mounting. This is much easier for bed levelling in comparison to 4 point mounting. First level the side with two holes and fix in place, then level the side with one hole. A glass plate is highly recommended to provide a truly flat surface and rigidity. Additionally, the solder pads have been greatly increased in size, making it much easier and allowing for the use of 1206 surface mount components. But this does not remove the need to use proper strain relief.>>>>> Specifications: Dimensions (Outer): 214mm x 214mm; Dimensions (Heat Bed): 200mm x 200mm; Power Input: 12V/24V DC; Model number: D-0023; Item type: Heatbed; Material: PCB; Color: Red.>>>>> Package list: 1x PCB Heatbed MK2B.
