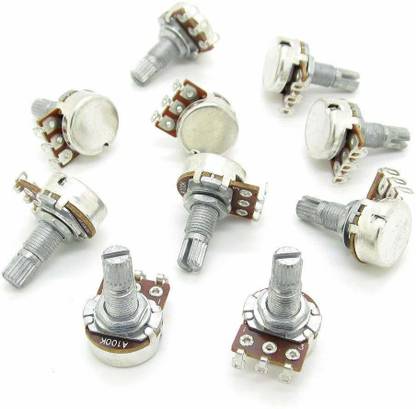

Electrobot B100K 1706 16mm 100K Ohm Rotary Potentiometer (PLASTIC SHAFT) (10 Pcs) Electronic Components Electronic Hobby Kit

An adjustable potentiometer, 100K Potentiometer can open up many interesting user interfaces. Turn the pot and the resistance changes. Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot. A potentiometer is Pre-mounted and 3 output berg connector pin are available for easy connections and disconnections in your project. Mechanical Characteristics: Total rotational angle - 300° ± 5° Switch Rotational angle - 35° ± 5° Rotational torque - 2 ~ 20mN.m (20 ~200gf.cm) Switch Action - 15-45mNm. (150-450gf.cm) Rotation stopper strength - 0.7N.m (7kgf.cm) Push pull strength - 80N (4kgf) Bushing nut tightening strength - 0.7N.m (7kgf.cm) Electrical characteristics: Total resistance - 100K Total resistance tolerance - ± 20% (more than 1M? ± 30%) Rated power - Curve B:0.2W, Other than B:0.1W Switch Rated Power - 0.5A at AC/250V Max. operating voltage - curve B : 200V, Other than B : 150V Switch Contact Resistance - less than 30m? Resistance taper - A,B,C,D,W Residual resistance - R?250K? 0.1% max. of total resistance, 250K? >R>10 K? 20? max, 10 K??R 10? max Insulation resistance - More than 100M? at DC 500V Withstand voltage - for 1 minute or more at AC 500V Slide noise - less than 80mV Durability: Rotational life - 10,000 Cycles
