Electrobot Flex Sensor 2.2 Inch Bend Sensor for Hand Gesture Recognition Compatible with Arduino & Other MCU's Electronic Components Electronic Hobby Kit

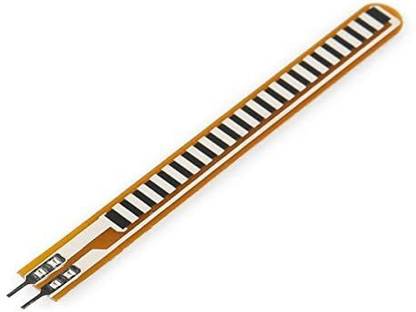

A simple flex sensor 2.2" in length. As the sensor is flexed, the resistance across the sensor increases. The resistance of the flex sensor changes when the metal pads are on the outside of the bend ( text on inside the bend). Connector is 0.1" spaced and bread board friendly. As the flex sensor 2.2" is flexed, the resistance across the sensor increases. The resistance of flex sensor changes when the metal pads are on the outside of the bend (test on the inside of the bend). Connector is 0,1" spaced and bread board friendly. Length of the flex sensor is 2.2" note: please refrain from flexing or straining this sensor at the base. The usable range of the sensor can be flexed without a problem, but care should be taken to minimize flexing outside of the usable range. For best results, securely mount the base and bottom portion and only allow the actual flex sensor to flex. Mechanical specifications: life cycle: >1 million height: temperature range: -35°c to +80°c electrical specifications: flat resistance: 10k ohms ±30% bend resistance: minimum 2 times greater than the flat resistance at 180° pinch bend power rating : 0.5 watts continuous; 1 watt peak applications: robotics gaming (virtual motion) medical devices computer peripherals musical instruments physical therapy package includes: 1 x 2.2" flex sensor
